HYDROLIFT 20 Ton 11mm Low Height Hydraulic Jack Cylinder HL-LLJ-20

Brand: HYDROLIFT

HYDROLIFT 20 Ton 11mm Low Height Hydraulic Jack Cylinder HL-LLJ-20

Name: HYDROLIFT 20 Ton 11mm Low Height Hydraulic Jack Cylinder HL-LLJ-20
Brand: HYDROLIFT
SKU: TI-H2-83578
Price: 33058 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-H2-83578

MRP : ₹44700 ₹33058

26% OFF!

Get Extra ₹496 OFF on Prepaid Orders

Estimated Delivery By: Sep 2 - Sep 4

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹33058 (Including GST)

MRP : ₹44700

26% OFF!

Get Extra ₹496 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

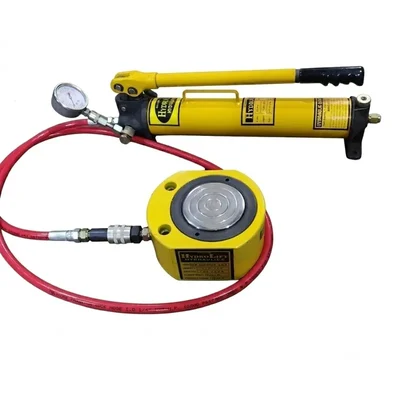

Compact 20 Ton low height hydraulic cylinder with hand pump, 2m hose, and pressure gauge.

Country of origin: India

Brand: HYDROLIFT
Weight (Approx.) : 2.7 kg
Load Capacity : 20 ton
Lifting Capacity : 20 ton
Lifting Range : 56 - 67 mm

Model: HL-LLJ-20
Type: Low Height Hydraulic Cylinders
Tonnage: 20 Ton
Stroke: 11 mm
Oil Capacity: 34 mm
Closed Height A: 56 mm
Extended Height B: 67 mm
DxL Outside Dia: 99x76 mm
Inside Dia E: 60 mm
Piston Dia F: 50 mm
Port Thread: ZG3/8"-19

The HYDROLIFT Hydraulic Low Lift Jack is a low height hydraulic cylinder featuring a chrome-plated cylinder wall and principal axis to prevent corrosion and reduce friction. It includes a spring for quick flexing, a brass ring to protect against overloading and absorb heaviness, and a stopping ring to protect the cylinder when the stroke reaches the top.

Features

Chrome-plated cylinder wall and principal axis to prevent corrosion and reduce friction.
Principal axis designed to avoid axis break when overloading.
High-quality brass ring joint to protect against overloading and absorb heaviness from the other side.
Built-in spring providing quick flexing capability.
Stopping ring to protect the cylinder when the stroke reaches the top.

Applications

Heavy lifting in low-clearance areas

Usage

Connect the hydraulic hand pump to the cylinder port (ZG3/8"-19) using the 2mtrs hose.
Monitor pressure via the pressure gauge during lifting operation.
Operate the hydraulic hand pump to extend the piston up to the 11mm stroke limit.
Utilize the quick flexing spring to retract the piston after pressure release.
