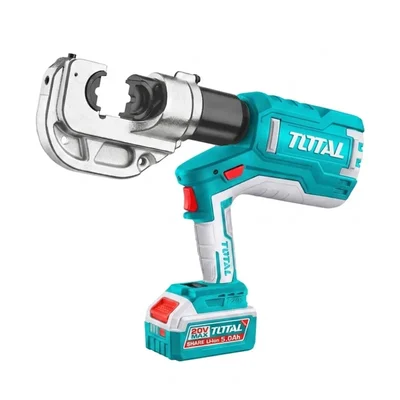

Total 20V 120KN 16-400mm² Heavy Duty Brushless Cordless Hydraulic Cable Crimping Tool Kit TCTLI2005

Brand: TOTAL

Total 20V 120KN 16-400mm² Heavy Duty Brushless Cordless Hydraulic Cable Crimping Tool Kit TCTLI2005

Name: Total 20V 120KN 16-400mm² Heavy Duty Brushless Cordless Hydraulic Cable Crimping Tool Kit TCTLI2005
Brand: TOTAL
SKU: SI-T5-81076
Price: 75930 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: SI-T5-81076

MRP : ₹132850 ₹75930

43% OFF!

Get Extra ₹1,139 OFF on Prepaid Orders

Estimated Delivery By: Aug 25 - Aug 27

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹75930 (Including GST)

MRP : ₹132850

43% OFF!

Get Extra ₹1,139 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

20V 120KN 16-400mm² cordless hydraulic cable crimper with LED cycle display, 12 die pairs, 2x 5.0Ah batteries, and case.

Country of origin: China

Brand: TOTAL
Weight (Approx.) : 12.5 kg

Model No.: TCTLI2005
Product Type: Cordless Electro-Hydraulic Cable Crimping Tool
System Voltage: 20V
Crimping Force: 120 KN
Crimping Range: 16 mm² to 400 mm²
Stroke Length: 42 mm
Crimp Cycle Time: 6 to 18 seconds
Display: LED Usage Count Display
Batteries Included: 2 x 20V 5.0Ah Li-Ion Battery Packs (TFBLI2053)
Charger Included: 1 x 4A Fast Charger (TFCLI20411E, 220–240V ~ 50/60Hz)
Packaging: Plastic Carrying Case + Color Box

The Total TCTLI2005 is an industrial-grade 20V cordless hydraulic cable crimping tool designed for heavy-duty electrical jointing, power distribution line installation, and industrial wiring applications. Generating a massive 120 KN of hydraulic crimping force with a 42mm stroke length, it effortlessly crimps copper and aluminum lugs from 16mm² all the way up to 400mm² within a fast 6–18 second cycle time. Featuring an integrated LED usage count display screen, it allows operators to track crimp cycles and maintenance intervals in real time. The complete kit includes 12 sets of interchangeable crimping dies (16mm² to 400mm²), two high-capacity 20V 5.0Ah lithium-ion battery packs (TFBLI2053), a 4A fast charger (TFCLI20411E), replacement hydraulic sealing rings, and hydraulic fluid, all neatly housed inside a protective plastic carrying case and color box.

Features

Massive 120 KN Crimping Force: High-pressure hydraulic system delivers 120 KN force with a 42mm stroke to ensure tight, reliable electrical lug compression.
16–400mm² Wide Capacity: Supplied with 12 pairs of crimping dies (16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm²) for complete cable coverage.
Fast 6–18s Cycle Time: Automatic high-speed hydraulic ram completes crimps efficiently depending on the cable diameter.
Integrated LED Usage Count Display: Digital display screen tracks crimp cycles and monitors tool usage statistics on site.
Dual 5.0Ah High-Capacity Battery Kit: Powered by two 20V 5.0Ah battery packs (TFBLI2053) and a 4A fast charger (TFCLI20411E) for all-day site operation.

Applications

Electrical Power Distribution: Crimping heavy-duty aluminum and copper cable lugs on high-voltage transformers, switchgears, and power grids.
Industrial Plant Wiring: Terminating thick armored power cables across manufacturing plants, sub-stations, and commercial electrical panels.
Telecommunications & Utilities: Jointing main utility power lines, underground cabling, and backup generator power feeds.

Usage

Die Set Selection: Select the upper and lower crimping dies matching your target cable lug size (e.g., 120mm² or 400mm²) and slide them into the crimping head jaws.
Lug & Cable Insertion: Position the stripped copper/aluminum cable lug inside the die cavity between the jaws.
Battery Connection: Slide a fully charged 20V 5.0Ah lithium-ion battery pack into the base of the handle until it locks firmly into position.
Crimping Operation: Depress the operating trigger; the hydraulic ram will advance and compress the lug until maximum 120 KN pressure is achieved, then auto-retract. Check the LED screen to view the updated cycle count.
Post-Work Maintenance: Remove the battery after work, wipe down the hydraulic head with a clean cloth, inspect fluid levels if necessary, and store all dies and tools in the plastic case.
