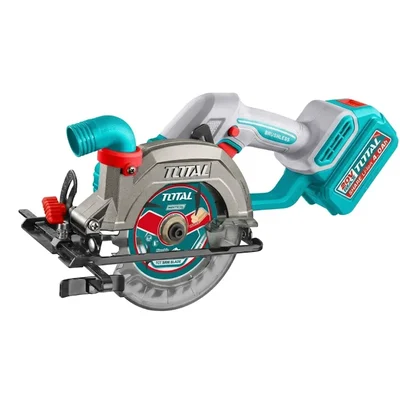

Total 20V 140mm 6300 RPM Brushless Cordless Circular Saw Kit 4.0Ah Battery TSLI14023

Brand: TOTAL

Total 20V 140mm 6300 RPM Brushless Cordless Circular Saw Kit 4.0Ah Battery TSLI14023

Name: Total 20V 140mm 6300 RPM Brushless Cordless Circular Saw Kit 4.0Ah Battery TSLI14023
Brand: TOTAL
SKU: SI-T3-80849
Price: 8442 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: SI-T3-80849

MRP : ₹11400 ₹8442

26% OFF!

Get Extra ₹127 OFF on Prepaid Orders

Estimated Delivery By: Aug 24 - Aug 26

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹8442 (Including GST)

MRP : ₹11400

26% OFF!

Get Extra ₹127 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Cordless circular saw20V 140mm brushless cordless circular saw with 6300 RPM speed, 50mm 90° cut depth, 4.0Ah battery, and blade.

Country of origin: China

Brand: TOTAL
Weight (Approx.) : 3.75 kg

Model No.: TSLI14023
System Voltage: 20V
Motor Type: Brushless Motor
No-Load Speed: 6,300 RPM
Blade Diameter: 140 mm (5-1/2 Inch)
Arbor Size: 20 mm
Max Cutting Capacity (90°): 50 mm
Max Cutting Capacity (45°): 33 mm
Battery Included: 1 x 20V 4.0Ah Li-Ion Battery Pack (TFBLI20021)
Charger Included: 1 x Fast Charger (TFCLI20411, 220–240V ~ 50/60Hz)

The Total TSLI14023 is a compact 20V brushless cordless circular saw designed for wood trimming, sheet cutting, cabinetry work, and job-site carpentry. Powered by an advanced 20V brushless motor operating at a high no-load speed of 6,300 RPM, it drives a 140mm (5-1/2") blade with a 20mm arbor for fast, clean rip and cross cuts. It features tool-free adjustable cutting depth and bevel settings, allowing precise cuts up to 50mm at 90° and 33mm at 45° bevel angles. The complete kit includes a 140mm TCT circular saw blade, a high-capacity 4.0Ah 20V lithium-ion battery pack (TFBLI20021), and a fast charger (TFCLI20411) packaged neatly inside a color box.

Features

High-Efficiency Brushless Motor: Delivers superior motor performance, extended battery runtime, and reduced thermal wear without carbon brushes.
6300 RPM High-Speed Cutting: Drives 140mm blades smoothly for fast, splinter-free cuts across plywood, OSB, and lumber.
Adjustable Bevel & Depth Control: Allows quick adjustment of cutting depth and bevel angles up to 45° for accurate angled cuts.
Solid 50mm Cutting Capacity: Achieves a maximum cutting depth of 50mm at 90° and 33mm at a 45° bevel angle.
Complete Battery & Charger Set: Comes supplied with a 20V 4.0Ah battery pack (TFBLI20021) and fast charger (TFCLI20411) out of the box.

Applications

Carpentry & Woodworking: Cross-cutting and ripping solid timber, plywood sheets, MDF, and wooden framing studs.
Cabinetry & Joinery: Precision bevel cutting and depth-controlled dado or groove cuts for furniture and shelving.
Site Construction & Renovation: Trimming door frames, floorboards, and roof battens on residential job sites.

Usage

Blade Mounting: Press the spindle lock button, fit the 140mm blade onto the 20mm arbor in the correct directional orientation, and tighten the arbor bolt securely.
Depth & Bevel Setup: Adjust the baseplate depth lever to set the desired cutting depth (up to 50mm) and tilt the bevel scale to 45° if angled cutting is required.
Battery Connection: Slide a fully charged 20V 4.0Ah battery pack into the tool base until locked.
Operation: Place the front shoe plate flat on the workpiece, depress the trigger lock-off button, squeeze the trigger switch, and push the saw forward smoothly along your marked cut line.
Post-Work Care: Release the trigger switch, allow the blade to come to a complete stop, remove the battery pack, clean away sawdust accumulation, and store in a dry environment.
