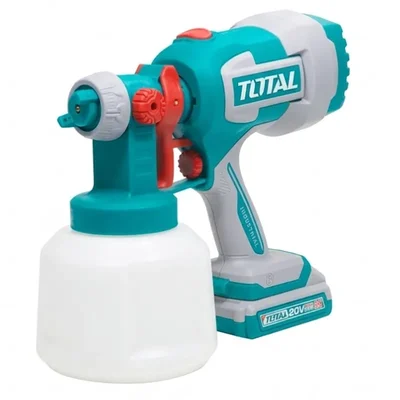

Total 20V 800ml/min 1000ml Container Adjustable High Flow Cordless Paint Spray Gun Bare Tool TSGLI2004

Brand: TOTAL

Total 20V 800ml/min 1000ml Container Adjustable High Flow Cordless Paint Spray Gun Bare Tool TSGLI2004

Name: Total 20V 800ml/min 1000ml Container Adjustable High Flow Cordless Paint Spray Gun Bare Tool TSGLI2004
Brand: TOTAL
SKU: SI-T4-80852
Price: 3140 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: SI-T4-80852

MRP : ₹4300 ₹3140

27% OFF!

Get Extra ₹47 OFF on Prepaid Orders

Estimated Delivery By: Aug 24 - Aug 26

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹3140 (Including GST)

MRP : ₹4300

27% OFF!

Get Extra ₹47 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

20V 800ml/min cordless paint spray gun with 1000ml container, 1.5/2.5mm copper nozzles (battery sold separately).

Country of origin: China

Brand: TOTAL
Weight (Approx.) : 1.2 kg

Model No.: TSGLI2004
Product Type: Cordless HVLP Paint Spray Gun
System Voltage: 20V
Spraying Pressure: 0.1 – 0.2 Bar
Max. Flow Rate: 800 ml/min
Max. Viscosity: 120 DIN-s
Container Capacity: 1000 ml
Copper Nozzle Sizes: 1.5 mm & 2.5 mm
Spray Adjustment: Adjustable Spray Amplitude
Battery & Charger: Sold Separately
Packaging: Color Box

The Total TSGLI2004 is a high-efficiency 20V cordless HVLP paint spray gun designed for smooth, hassle-free painting across home renovation, woodworking, automotive, and outdoor maintenance tasks. Featuring an adjustable spray amplitude, a maximum flow rate of 800 ml/min, and a spraying pressure of 0.1–0.2 Bar, this tool handles paints, lacquers, stains, and varnishes up to a maximum viscosity of 120 DIN-s. It comes equipped with a large 1000ml container and two durable copper nozzles (1.5mm and 2.5mm) for fine and coarse spray control. Packaged in a color box, this bare unit tool operates on Total’s 20V lithium-ion battery platform (battery and charger sold separately).

Features

High Flow Performance: Delivers up to 800 ml/min maximum flow rate for fast, even surface coverage.
1000ml Large Container: High-capacity paint cup minimizes frequent refills during large painting projects.
Dual Copper Nozzles (1.5mm / 2.5mm): Precision copper nozzles allow versatile application from fine finishing to thicker coatings.
Adjustable Spray Amplitude: Customizable spray patterns enable smooth vertical, horizontal, or circular paint delivery.
120 DIN-s Viscosity Handling: Capable of spraying thick latex, enamels, primers, varnishes, and wood stains.

Applications

Home Interior & Exterior Painting: Spraying walls, doors, window frames, fences, and metal railings.
Furniture & Cabinetry Refinishing: Applying fine lacquer, varnish, or enamel coats onto wooden furniture and cabinets.
Automotive & Craft Work: Touch-up auto body painting, primer application, and DIY craft projects.

Usage

Viscosity Testing: Measure paint thickness using the included viscosity measuring cup to ensure it is under 120 DIN-s; thin if necessary.
Container Preparation: Fill the 1000ml paint container with diluted paint and screw it firmly onto the spray gun housing.
Nozzle & Pattern Selection: Select either the 1.5mm or 2.5mm copper nozzle and adjust the spray amplitude pattern for horizontal, vertical, or round coverage.
Battery Setup: Attach a compatible Total 20V lithium-ion battery (sold separately) to the tool base until latched.
Spraying & Cleaning: Maintain a steady distance of 15–25 cm from the surface while depressing the trigger. Clean the nozzle thoroughly with the cleaning needle after use.
