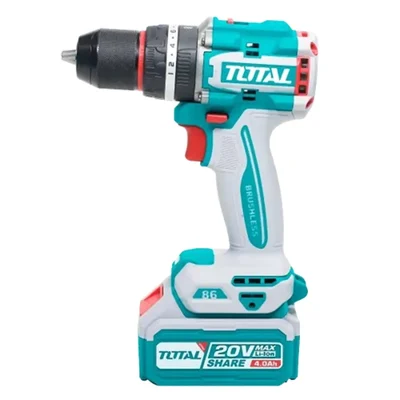

Total 20V 86Nm 2100 RPM 13mm Jacobs Metal Chuck Brushless Cordless Compact Impact Drill Kit TIDLI208688

Brand: TOTAL

Total 20V 86Nm 2100 RPM 13mm Jacobs Metal Chuck Brushless Cordless Compact Impact Drill Kit TIDLI208688

Name: Total 20V 86Nm 2100 RPM 13mm Jacobs Metal Chuck Brushless Cordless Compact Impact Drill Kit TIDLI208688
Brand: TOTAL
SKU: SI-T8-80304
Price: 9764 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: SI-T8-80304

MRP : ₹13200 ₹9764

26% OFF!

Get Extra ₹146 OFF on Prepaid Orders

Estimated Delivery By: Aug 20 - Aug 22

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹9764 (Including GST)

MRP : ₹13200

26% OFF!

Get Extra ₹146 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

20V brushless compact impact drill with 86Nm torque, 13mm Jacobs metal chuck, dual 2.0Ah batteries, and fast charger.

Country of origin: China

Brand: TOTAL
Weight (Approx.) : 3.1 kg
Drilling Capacity : 13 mm

Model No.: TIDLI208688
Product Type: Brushless Cordless Compact Impact Drill
Voltage: 20V
Motor Type: Brushless Motor
Max Torque: 86 Nm
Chuck Type & Capacity: 13 mm Jacobs Keyless Metal Chuck with Spindle Lock
No-Load Speed: 0–550 / 0–2100 rpm
Max Impact Rate: 31,500 bpm
Torque Settings: 22 + 1 + 1
Speed Control: Mechanical 2-Speed Gear
Work Light: Integrated LED Work Light
Battery Charger: Fast Charger TFCLI20411 (220–240V ~ 50/60Hz)

The Total TIDLI208688 is a top-tier, heavy-duty 20V brushless cordless compact impact drill engineered for maximum efficiency in demanding drilling, screwdriving, and hammer-drilling applications. Powered by a high-torque brushless motor, it generates an impressive maximum torque of 86 Nm and a top no-load speed of 2100 RPM, along with a high impact rate of up to 31,500 BPM. Equipped with a premium 13 mm Jacobs keyless metal chuck, spindle lock function, mechanical 2-speed gearing, and 22+1+1 torque clutch settings, it delivers extreme clamping strength, precision control, and long-term reliability across concrete, masonry, steel, and timber. The kit comes complete with two 2.0Ah lithium-ion battery packs, a TFCLI20411 fast charger, an integrated LED work light, 3 HSS drill bits, 3 masonry drill bits, and 2 impact screwdriver bits, all neatly organized inside a heavy-duty carrying case.

Features

86 Nm High-Torque Brushless Motor: Delivers extreme 86 Nm torque with extended motor lifespan, higher energy efficiency, and reduced heat buildup.
Premium Jacobs Metal Chuck: Fitted with a heavy-duty 13 mm Jacobs keyless metal chuck and spindle lock for ultimate bit retention under severe loads.
High Impact Rate & Speed: Dual-speed mechanical gear (0–550 / 0–2100 RPM) and a 31,500 BPM impact rate enable rapid penetration into tough concrete and metals.
22+1+1 Torque Settings: Offers 22 clutch positions for flush screw driving, plus dedicated drilling and hammer-impact modes.
Fast-Charging Complete Kit: Includes two 20V 2.0Ah batteries, a TFCLI20411 fast charger, 8 drilling and driving accessories, and a protective carrying case.

Applications

Heavy Masonry & Concrete: Hammer-drilling anchor holes, plug points, and conduit passages in concrete walls and brickwork.
Metalworking & Structural Fabrication: High-torque drilling through thick steel plates, structural iron, and aluminum extrusions.
Heavy Fastening & Carpentry: Driving long structural wood screws, lag bolts, and assembling timber frames or metal cabinetry.

Usage

Battery Installation: Slide a fully charged 20V 2.0Ah lithium-ion battery into the drill base until it clicks firmly into place.
Bit Mounting: Rotate the 13 mm Jacobs metal chuck counterclockwise to open the jaws, insert your drill or driver bit, and hand-tighten firmly.
Mode & Torque Setup: Rotate the mode selector ring to driving, drilling, or hammer-impact mode, and choose gear 1 (low speed/high torque) or gear 2 (high speed).
Operation: Depress the variable speed trigger to start drilling or driving, utilizing the built-in LED light to illuminate dark work areas.
Recharging: Monitor battery charge levels and recharge depleted packs using the provided TFCLI20411 fast charger.
