Total 20V 66Nm 2000 RPM 4-in-1 Multi-Head Interchangeable Chuck Brushless Cordless Drill Driver Kit TDLI206686

Brand: TOTAL

Total 20V 66Nm 2000 RPM 4-in-1 Multi-Head Interchangeable Chuck Brushless Cordless Drill Driver Kit TDLI206686

Name: Total 20V 66Nm 2000 RPM 4-in-1 Multi-Head Interchangeable Chuck Brushless Cordless Drill Driver Kit TDLI206686
Brand: TOTAL
SKU: SI-T6-80323
Price: 10588 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: SI-T6-80323

MRP : ₹14300 ₹10588

26% OFF!

Get Extra ₹159 OFF on Prepaid Orders

Estimated Delivery By: Aug 20 - Aug 22

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹10588 (Including GST)

MRP : ₹14300

26% OFF!

Get Extra ₹159 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

20V 66Nm brushless multi-head drill driver kit with 4 interchangeable attachments, dual 2.0Ah batteries, and 47 accessories.

Country of origin: China

Brand: TOTAL
Weight (Approx.) : 3.2 kg
Drilling Capacity : 13 mm

Model No.: TDLI206686
Product Type: Cordless Multi-Head Drill Driver
Voltage: 20V
Motor Type: Brushless Motor
Max Torque: 66 Nm
No-Load Speed: 0–500 / 0–2000 rpm
Interchangeable Attachments: 13mm Metal Chuck, Right-Angle, Offset Angle, Quick-Release
Torque Settings: 22 + 1
Speed Control: Mechanical 2-Speed Gear
Work Light: Integrated LED Work Light
Battery Power Indicator: LED Battery Indicator
Charge Voltage: 220–240V ~ 50/60Hz

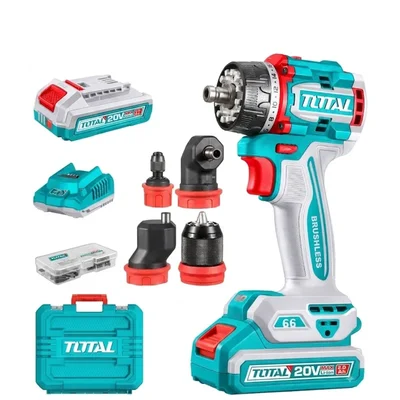

The Total TDLI206686 is a versatile 20V brushless cordless multi-head drill driver system engineered for maximum accessibility and performance in tight or complex spaces. Delivering a powerful 66 Nm of maximum torque and up to 2000 RPM across a mechanical 2-speed gearbox, this multi-head drill driver features a quick-release system with four interchangeable attachments: a 13mm (1/2") all-metal chuck, a right-angle attachment, an offset angle attachment, and a quick-release bit holder. Equipped with 22+1 torque settings, spindle lock, and an integrated LED work light, it adapts effortlessly to cabinet making, carpentry, and electrical installations. The complete kit comes packed in a heavy-duty carrying case with two 2.0Ah lithium-ion battery packs, a charger, and a 47-piece accessory set.

Features

4-in-1 Interchangeable Multi-Head System: Includes a 13mm metal chuck, right-angle head, offset angle head, and quick-release bit holder for extreme versatility in tight spots.
High-Torque Brushless Motor: Generates up to 66 Nm of torque with enhanced battery efficiency, cooler operation, and a longer motor lifespan.
Mechanical 2-Speed Gearbox: Variable speed control ranging from 0–500 RPM for high-torque driving to 0–2000 RPM for high-speed drilling.
22+1 Torque Settings & Spindle Lock: Precise clutch control prevents over-tightening screws, while spindle lock enables quick hand adjustments.
Complete Professional Kit: Supplied with two 20V 2.0Ah Li-ion batteries, a charger, an integrated LED work light, and a 47-piece accessory set inside a carrying case.

Applications

Cabinetry & Furniture Assembly: Screwdriving inside deep drawers, tight corners, and flush against adjacent cabinet walls using offset and right-angle heads.
Electrical & Plumbing Installations: Drilling and fastening inside narrow stud spaces, joists, junction boxes, and pipe chases.
Automotive & Maintenance Repair: Reaching awkward engine bay fasteners and under-dash screws with modular attachment heads.

Usage

Attachment Selection: Choose the appropriate attachment head (13mm metal chuck, right-angle, offset angle, or quick-release) for your specific task and click it firmly onto the drill spindle.
Battery Attachment: Insert a charged 20V 2.0Ah battery pack into the base of the handle until it locks securely.
Bit Insertion: Load your drill bit or driver bit into the installed attachment head and hand-tighten or lock as required.
Torque & Speed Adjustment: Set the torque ring to the desired setting (1–22 for driving or drill icon for drilling) and select gear 1 (low speed) or gear 2 (high speed).
Operation & Storage: Depress the variable speed trigger to operate, using the LED light for illumination, and detach heads for compact storage inside the carrying case after use.
