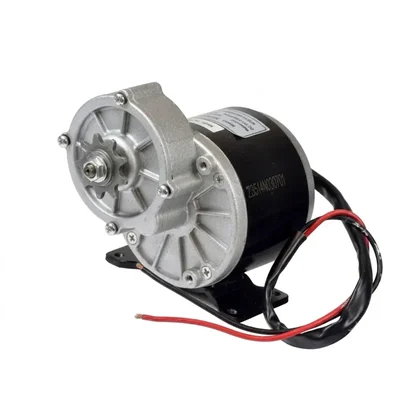

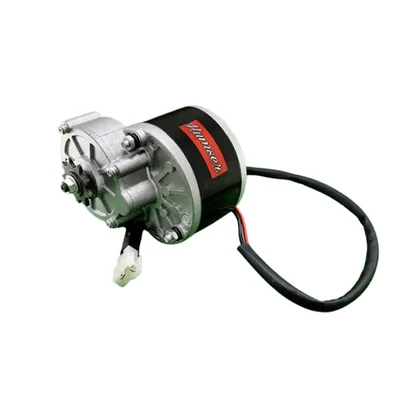

Premium Quality 24V 250W Side Drive PMDC Geared Electric Cycle Motor

Brand: Generic ( Made in India )

Premium Quality 24V 250W Side Drive PMDC Geared Electric Cycle Motor

Name: Premium Quality 24V 250W Side Drive PMDC Geared Electric Cycle Motor
Brand: Generic ( Made in India )
SKU: TI-CG-74599
Price: 7600 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-CG-74599

MRP : ₹10300 ₹7600

26% OFF!

Get Extra ₹114 OFF on Prepaid Orders

Estimated Delivery By: Aug 25 - Aug 27

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹7600 (Including GST)

MRP : ₹10300

26% OFF!

Get Extra ₹114 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

24V 250W 330RPM geared PMDC motor with 9-tooth sprocket for e-bike conversion and robotics.

Country of origin: India

Brand: Generic ( Made in India )

Motor Type: Brushed PMDC Geared Motor
Operating Voltage: 24V DC
Rated Output Power: 250 W
Rated Output Speed: 330 RPM (after gearbox reduction)
Reduction Gear Ratio: 9.78 : 1
Full Load Current: ≤ 13.4 A
No-Load Current: ≤ 2.2 A
Rated Torque: 8.15 kg·cm
Drive Sprocket: 9-Tooth (fits #410 bicycle chain)

This 24V 250W PMDC Geared Motor is engineered for high torque, low-speed applications such as electric bicycles, DIY e-scooters, and custom robotics. Built with a permanent magnet direct current (PMDC) brushed motor coupled with a 9.78:1 internal reduction gearbox, it delivers strong rotational force while maintaining low power consumption. Equipped with a pre-installed 9-tooth sprocket compatible with standard #410 bicycle chains, this motor provides steady power delivery and seamless bi-directional rotation by swapping input polarity. Its integrated mounting base plate allows straightforward bolt-on setup across various vehicle frames and project chassis.

Features

High-torque PMDC brushed motor with integrated 9.78:1 gear reduction gearbox.
Reversible motor rotation by simply interchanging the power leads.
Pre-fitted with a 9-tooth drive sprocket designed for standard #410 bicycle chains.
Integrated mounting base bracket with pre-drilled holes for secure frame installation.
Robust metal construction providing efficient heat dissipation and operational reliability.

Applications

Electric bicycle (E-bike) side-drive conversion kits.
Electric tricycles, e-scooters, and motorized mobility carts.
Custom DIY robotics, combat bots, and automated guided vehicles (AGVs).
Small electric go-karts and toy vehicle propulsion systems.

Usage

Mount the motor base securely onto your vehicle frame or custom bracket using M6 bolts.
Align the 9-tooth sprocket with your wheel or drive axle sprocket and loop a #410 bicycle chain around them.
Connect the motor supply wires to a 24V DC brush motor speed controller capable of handling at least 15A.
Wire a 24V DC battery power source to the motor controller.
Test rotation; if the motor spins in reverse, swap the positive and negative lead connections.

Maintenance

Visual Inspection: Weekly check for any hydraulic fluid sweating or leakage along the main 43mm mirror pipe.
Debris Clearing: Clean away accumulated mud, sand, and dust from the outer spring coils to prevent scratches on the internal seals.
Lubrication Maintenance: Spray a light layer of anti-rust lubricant over the exposed metal portions during seasonal rainy months.
Bush & Bolt Check: Periodically check the mounting assembly bolts and internal rubber dampening bushes for signs of compression cracking.
