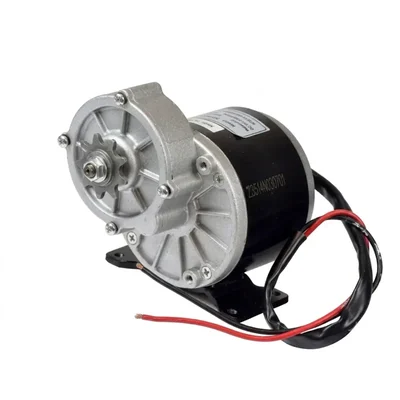

24V 350W 324RPM geared PMDC motor with 9-tooth sprocket for e-bike conversion and robotics.

Country of origin: India

Brand: Generic ( Made in India )

Motor Type: Brushed PMDC Geared Motor
Operating Voltage: 24V DC
Rated Output Power: 350 W
Output Speed (After Reduction): 324 RPM
Base Motor Speed: ~3000 – 3200 RPM
Rated Current: ~18.5 A – 19.2 A
No-Load Current: ≤ 2.5 A
Rated Torque: 11 N·m (110 kg·cm)
Drive Sprocket: 9-Tooth (fits #410 bicycle chain)

The Generic 24V 350W PMDC Geared Motor is engineered for heavy-duty electric bicycles, e-tricycles, custom scooters, and robotics applications. Powered by a permanent magnet direct current (PMDC) brushed motor coupled with an integrated gear reduction system, it generates up to 11 Nm of high rotational torque while keeping the output speed. Equipped with a pre-installed 9-tooth drive sprocket designed for standard #410 bicycle chains, this 350W motor delivers smooth acceleration and hill-climbing capability. It features bidirectional rotation by reversing power polarity and includes a pre-welded base mounting plate for quick and stable frame installation.

Features

High-torque 350W PMDC brushed motor with integrated gear reduction gearbox.
Low output speed (~324 RPM) with high starting torque (11 Nm) ideal for load-carrying applications.
Reversible motor rotation by simply interchanging positive and negative power leads.
Pre-fitted with a 9-tooth sprocket compatible with standard #410 bicycle chains.
Heavy-duty steel mounting bracket with pre-drilled holes for direct frame attachment.
Efficient heat dissipation and durable construction for long operational life.

Applications

Electric bicycle (E-bike) side-drive conversion kits.
Electric tricycles, e-cargo bikes, and mobility scooters.
Heavy-duty DIY robotics, combat bots, and automated guided vehicles (AGVs).
Custom motorized go-karts, mini vehicles, and industrial automation projects.

Usage

Mount the motor base securely onto your e-bike frame or chassis plate using heavy-duty bolts.
Align the 9-tooth motor sprocket with your rear wheel sprocket and loop a standard #410 bicycle chain around them.
Connect the motor power cables to a 24V DC brushed motor controller rated for at least 20A–25A.
Wire your 24V DC battery pack and throttle assembly to the controller.
Power on the system and test rotation; if the motor spins in reverse, simply swap the two motor lead connections.

Maintenance

Keep the exposed hydraulic rods clean by wiping away accumulated mud, sand, and road grime after daily shifts to protect the oil seals from tearing. Periodically inspect the external spring coils for structural fractures and check the shock bodies for evidence of hydraulic fluid leakage. Ensure mounting bolts are checked and re-torqued during standard fleet service intervals to maintain safe steering control.
