Brand: Toshweld

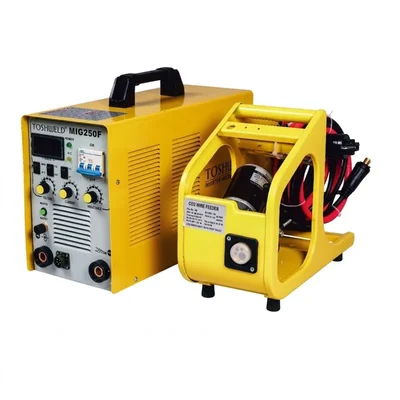

Toshweld 3-Phase MOSFET Inverter MIG Welding Machine, 250A CO2 Mig/Mag Welder External Wire Feeder, MIG 250 F
SKU: TI-T3-72152
Estimated Delivery By: May 26 - May 28
MRP : ₹53911 ₹44926
17% OFF!
Estimated Delivery By: May 26 - May 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹44926 (Including GST)
MRP : ₹53911
17% OFF!
Get Extra ₹674 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
An industrial-grade 250A three-phase inverter MIG/MAG welding system engineered with reliable MOSFET technology. It features an external wire feeder and a 2.5–18 mtr/min speed range for seamless structural steel fabrication.
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 21 kg
- Output Current Range : 250 amp
- Technology : MOSFET
- Model: MIG 250 F
- Machine Type: Inverter MIG / MAG / Stick Multi-Process Industrial Welder
- Technology: Multi-Card MOSFET Inverter
- Phase: Three Phase (3 Phase)
- Input Power Capacity: 8.5 kVA
- Output Current Range: 50 – 250 A
- Maximum Output Voltage Adjustment: 26.5 V
- Wire Feeder Speed Range: 2.5 – 18 mtr/min
- Compatible Mig Wire Diameter: 0.6 mm – 1.0 mm
- Power Factor: 0.93
- Insulation Class: F
- Protection Index: IP21
- Dimensions: 20 x 8 x 15 Inches
Description
The Toshweld MIG 250 F is a high-performance industrial dual-process inverter welding station intended for manual stick (MMA) and precision Gas Metal Arc Welding (GMAW/MIG/MAG) applications. This heavy-duty device generates a spatter-free, precisely controlled arc over a variable current range of 50 to 250 Amps thanks to its ultra-stable, multi-card MOSFET inverter core. It is equipped with a separate, heavy-duty exterior wire feeder station and runs on an industrial three-phase 415V electrical line. On the working floor, this design provides exceptional flexibility, enabling operators to roam around big fabrications while maintaining great feeding accuracy with wire sizes ranging from 0.6mm to 1.0mm.
Features
:- External Wire Feeding Station: A separate wire feeder cabinet improves movement around large structures and lessens overall torch strain.
- Precision Wire Speed Control: To precisely match particular gas and metal configurations, just adjust feeding rates between 2.5 and 18 meters per minute.
- Multi-Card MOSFET Core: The traditional multi-board design ensures quick power correction, good arc dynamic response, and simple workshop servicing.
- Industrial 3-Phase Logic: Prevents puddle dropping and wire stuttering by providing extremely steady power delivery across 415V grids.
- Heavy-Duty MCB Safety: To protect internal boards from power swings, a robust front-panel industrial molded circuit breaker (MCB) is used rather than a simple rocker switch.
- Digital Voltmeter/Ammeter Panel: Designed to control stringent parameter variations on crucial welds, this panel has high-visibility digital output monitoring panels.
Applications
:- Automotive & Chassis Fabrication: Constant, fast production of transport boxes, industrial trailers, and automobile subassemblies.
- Medium Structural Steelwork: Steel trusses, commercial storage mezzanine platforms, industrial storage racks, and angle iron frames are all seamlessly welded.
- Sheet Metal Assembly Shops: Producing accurate, low-distortion seams starting at 0.6mm on mild steel, stainless steel, and low-alloy containers.
- Reconditioning agricultural gear plates, warehouse gates, structural equipment casings, and commercial storage fixtures are examples of general repair and machinery upkeep.
Usage
:- Make sure your production facility has a reliable, grounded three-phase AC 415V connecting line to the power source input terminal block.
- Securely connect the gas and control lines between the external wire feeder cabinet assembly and the main power source.
- Place a clean spool of wire (0.6–1.0 mm) onto the spindle and carefully lock down the tension while guiding the strand into the dual-roll wire feeder mechanism.
- Using the front knobs, select your goal voltage adjustment, flip the industrial MCB breaker upward, and compare it to the desired wire feed velocity.
- To optimize airflow during continuous production blocks, make sure the high-velocity internal cooling fan intake grilles are left unobstructed.
