Brand: TURTLE

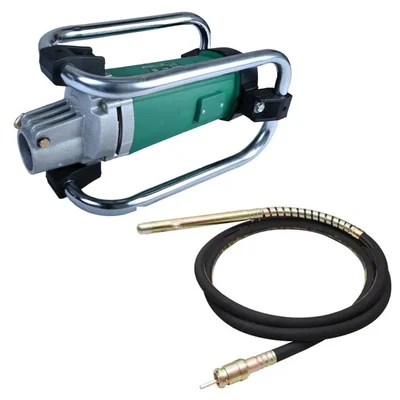

Turtle Gold 2650 W 4500 RPM Electric Concrete Vibrator (ST-956S) with 6 m 45 mm needle
SKU: TI-TG-52906
Delivery By: Dec 21 - Dec 23
MRP : ₹15800 ₹14985
5% OFF!
Delivery By: Dec 21 - Dec 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹14985 (Including GST)
MRP : ₹15800
5% OFF!
Get Extra ₹225 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Turtle Gold 2650 W 4500 RPM Electric Concrete Vibrator (ST-956S)
6 m 45 mm needle
Country of origin: China
Specifications
- Brand: TURTLE
- Weight (Approx.) : 21 kg
- Net Quantity : 1 pc
- Rod Diameter : 45 mm
- Model No. : ST-956S
- Rated Power : 2650 W
- Rated No-load Speed : 4500 r/min
- Rated Voltage : 220 V
- Rated Frequency : 50 Hz
- Needle Size (Length x Diameter) : 6 m x 45 mm
Description
The Turtle Gold ST956S delivers extreme consolidation power with a 2650W motor and a specialized 6 meter 45mm needle. Operating at 4500 RPM, it is ideal for massive concrete structures, deep foundations, and civil engineering projects, ensuring maximum density and superior structural integrity by removing air and water.
Features
:- Extreme Rated Power : Features a robust 2650 W motor built for continuous, heavy-duty operation on large-scale sites.
- Maximum Reach : The 6 meter flexible shaft allows for deep immersion and consolidation in large concrete forms like dams and bridge piers.
- High Speed Compaction : Operates at 4500 revolutions per minute (r/min) for rapid, effective removal of air pockets.
- Durable Design : Constructed for resilience in demanding professional construction environments.
- Efficient Consolidation : Ensures high-quality concrete finishing, minimizing voids and maximizing compressive strength.
Applications
:This heavy-duty Turtle Gold Concrete Vibrator is specifically designed for complex, large-volume, and deep concrete pours, including :
- Dam and water retaining structure construction
- Bridge piers and abutments
- High-rise building foundations and deep structural columns
- Industrial plant and turbine bases
- Mass concrete paving for highways and airfields
- Large precast concrete elements
Usage
:User Instructions :
- Safety First : Ensure the unit is plugged into a properly grounded 220 V power source and wear appropriate PPE (gloves, eye protection).
- Immersion : Insert the 45 mm needle vertically and quickly into the wet concrete, allowing the long 6m shaft to penetrate to the required depth.
- Vibration : Allow the needle to vibrate until air bubbles stop escaping and the surface becomes glossy (typically 10 to 20 seconds for deep pours).
- Extraction : Withdraw the needle slowly and steadily (about 1 to 2 inches per second) to close the hole and allow the concrete to flow smoothly back together.
- Spacing : Reinsert the needle in a new location, ensuring the consolidation areas overlap by about 50% to ensure uniform compaction across the entire pour.
- Switch Off : Turn the unit off and unplug it from the power supply upon completion of the work.
Maintenance :
- Immediate Cleaning : Immediately after use, run the vibrator for a short time immersed in a bucket of water or by hand-cleaning the needle to prevent concrete build-up. Never use water to clean the motor housing.
- Shaft Inspection : Regularly check the 6m flexible shaft for any tears, abrasions, or kinks, as damage can affect performance and safety.
- Motor Housing : Keep the motor unit clean and free of dust, dirt, and wet concrete. Ensure the air vents are clear for fast heat dissipation.
- Cable Check : Inspect the power cord frequently for cuts, cracks, or loose connections.
- Brush Replacement : As this is a high-power motor, inspect the carbon brushes periodically according to the manufacturer's manual and replace them when necessary to maintain peak 2650 W performance.
