Brand: Galaxy Pro

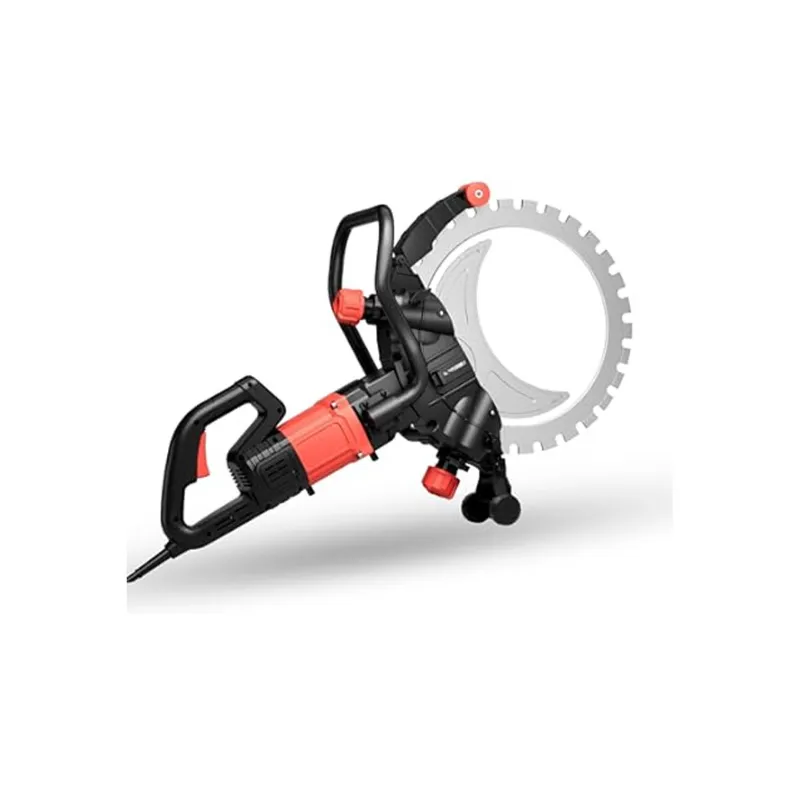

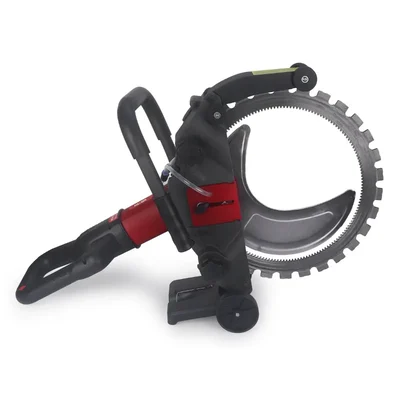

Galaxy Pro 290 mm 6000 W Electric Concrete Ring Saw Machine (GLX - 410)
SKU: TI-GP-35990
5815 people have viewed this recently
Delivery By: Dec 9 - Dec 11
MRP : ₹45500 ₹37396
18% OFF!
5815 people have viewed this recently Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹37396 (Including GST)
MRP : ₹45500
18% OFF!
Get Extra ₹561 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Galaxy Pro 290 mm Concrete Ring Saw Machine
6000 Watt
Country of origin: China
Specifications
- Brand: Galaxy Pro
- Power : 6000 w
- Weight (Approx.) : 19 kg
- Speed : 3000 rpm
- Cutting Size : 406 mm
- Net Quantity : 1 pc
- Rated Voltage : 220 - 240 V
- Rated Power : 6000 W
- No-Load Speed : 3000 RPM
- Max Depth : 290 mm
- Max Blade : 406 mm
Description
The Galaxy Pro 290 mm Concrete Ring Saw Machine (GLX - 410) is a powerful and efficient cutting tool designed for heavy-duty construction tasks. With a robust motor and a cutting depth of up to 290 mm, it excels in precision cutting through reinforced concrete, brick, and masonry. Its ergonomic design ensures operator comfort during extended use, making it ideal for professionals in demanding environments.
Features
:- Extreme Cutting Depth : Capable of cutting up to 290mm deep, significantly deeper than standard center-axle saws of the same size.
- Massive Power : Equipped with a 6000 Watt motor to handle the toughest reinforced concrete and stone.
- Ring Drive System : Uses a patented roller drive system that eliminates the central spindle, allowing the blade to cut nearly to its full radius.
- Wet Cutting Capable : Integrated water feed system eliminates dust and keeps the blade cool during deep structural cuts.
- High Torque : Operates at 3000 RPM optimized for grinding through steel reinforcement bars within concrete.
Applications
:- Deep Wall Sawing : Cutting openings for doors, windows, and ventilation in thick poured concrete walls.
- Pipe Cutting : Cutting through large diameter concrete pipes.
- Foundation Work : trimming deep foundation piles or footings.
- Staircase Removal : Precision deep cutting for removing concrete stair sections.
Usage
:User Instructions :
- Preparation : Wear full PPE (Rubber boots, waterproof gloves, eye protection, and ear defenders).
- Blade Check : Ensure the ring blade is seated correctly between the drive rollers and guide rollers.
- Water Connection : Connect the water hose. Never run dry. Water is essential for lubricating the drive rollers and cooling the blade.
- Power Up : Connect to a high-amperage 220V power source (ensure the breaker can handle 6000W).
- Engagement : Turn on the water, then start the motor. Allow it to reach full RPM.
- Cutting : Enter the cut slowly. Do not twist the machine. Apply steady forward pressure, letting the abrasive action of the ring blade do the work.
Maintenance :
- Roller Inspection : The drive rollers are wear items. Inspect them after every job and adjust or replace if the blade slips.
- Flush System : Run clean water through the machine after use to remove concrete slurry from the drive mechanism.
- Blade Care : Check the ring blade for cracks or warping. A bent ring blade can damage the drive rollers.
- Electrical Safety : Inspect the heavy-duty power cord regularly for cuts or heat damage due to the high power draw.
