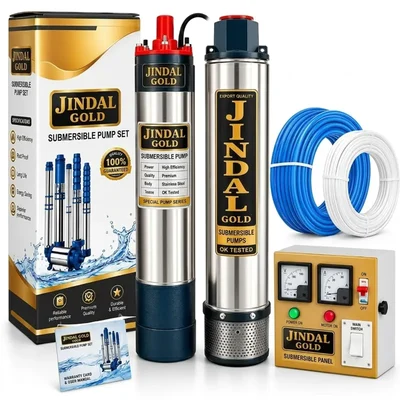

Jindal 2 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 100ft Head, 9000 LPH, With CP, 30 Meter 30 Submersible Cable, Safety Wire

Brand: Generic ( Made in India )

Jindal 2 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 100ft Head, 9000 LPH, With CP, 30 Meter 30 Submersible Cable, Safety Wire

Name: Jindal 2 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 100ft Head, 9000 LPH, With CP, 30 Meter 30 Submersible Cable, Safety Wire
Brand: Generic ( Made in India )
SKU: TI-J2-80115
Price: 13699 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J2-80115

MRP : ₹18500 ₹13699

26% OFF!

Get Extra ₹205 OFF on Prepaid Orders

Estimated Delivery By: Aug 13 - Aug 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹13699 (Including GST)

MRP : ₹18500

26% OFF!

Get Extra ₹205 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 2 HP 12 Stage V4 Submersible Pump

100ft Max Head, 150 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 2 hp
Weight (Approx.) : 23.5 kg
Flow Rate : 150 lpm
Head : 31 meter

Power : 2 Hp
Weight (Approx.) : 23.5 Kg
Flow Rate : 150 lpm
Head : 31 meter
Product Name : Borewell Submersible Pump
Wattage : 1.5 kW
Supply Voltage : 200-220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 12 Stage
Pump Type : V4
Suitable Bore Size : 4 inch
Max. Head Range : 100 Feet (31 Meter)
Max. Flow/Discharge Rate : 150 LPM (9000 LPH)
Pipe Size (Suction x Delivery) : 25x50 mm (1x2 inch)
Cooling Type : Water Cooled

Material Of Construction

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Pump Shaft : SS-410

This water-cooled submersible pump operates completely submerged, ensuring efficient and continuous pumping for domestic, agricultural, and industrial needs. The motor is safely cooled by surrounding water, providing reliable and high-efficiency water extraction from deep underground sources.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High electrical and mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption

Accessories

Control Panel
30 Meter Submersible Cable
Safety Wire

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty

1 Year WARRANTY on manufacturing defects only.

Warranty Terms

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.
