Brand: INGCO

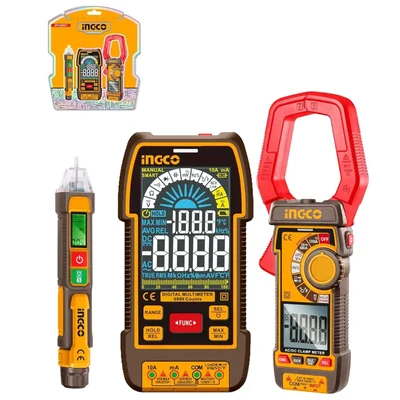

Ingco 12V-1000V 9999-Count True RMS Digital Multimeter Clamp Meter Electrical Test Kit Combo COS24069
SKU: TI-I3-34891
35 people have bought this recently
Estimated Delivery By: Jul 22 - Jul 24
MRP : ₹7630 ₹5450
29% OFF!
35 people have bought this recently Estimated Delivery By: Jul 22 - Jul 24 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹5450 (Including GST)
MRP : ₹7630
29% OFF!
Get Extra ₹82 OFF on Prepaid Orders
QTY :
-
1
+
Short Description

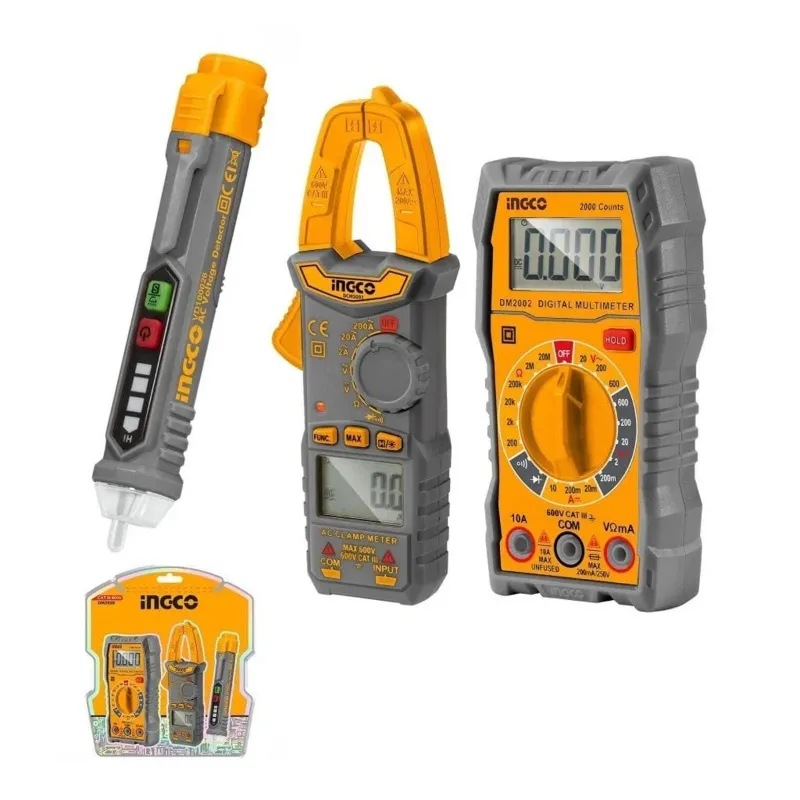

Comprehensive 3-piece electrical testing tool kit featuring a professional digital multimeter, high-current clamp meter, and voltage detector.
Country of origin: China
Specifications
- Brand: INGCO
- Weight (Approx.) : 500 gm
- Net Quantity : 1 pc
- Model Number: COS24069
- Power Source: Battery Powered
- Multimeter Specs (DM110004): True RMS 9999 Counts | Up to 1000V DC/AC | Up to 10A DC/AC Current
- Clamp Meter Specs (DCM610002): True RMS 6000 Counts | Up to 1200A AC/DC Current | Up to 1000V DC / 750V AC
- Voltage Detector Specs (VD210003): 12V to 1000V (High Sensitivity) | 48V to 1000V (Low Sensitivity) | 50/60Hz Frequency
Description
The Ingco COS24069 Electrical Test Kit is a professional-grade troubleshooting solution designed for electricians, technicians, and heavy-duty industrial applications. This comprehensive 3-piece diagnostic bundle features the VD210003 Non-Contact Voltage Detector (12V–1000V) equipped with dual sensitivity modes and an integrated flashlight, the DM110004 9999-Count True RMS Digital Multimeter for high-accuracy circuit diagnostics, and the DCM610002 1200A AC/DC True RMS Digital Clamp Meter for rapid, safe current measurements. Packed with dynamic measurement capabilities—including accurate assessments of current, voltage, resistance, capacitance, and diodes—this battery-powered electrical maintenance kit provides everything required to maintain safety and efficiency on the job.
Features
:- Comprehensive 3-in-1 Combo: Combines a high-precision digital multimeter, a sensitive 1200A clamp meter, and a dual-sensitivity voltage detector in one bundle.
- True RMS High-Count Displays: Features a 9999-count multimeter and a 6000-count clamp meter for precise, professional True RMS readings on distorted waveforms.
- Non-Contact Safety Testing: The integrated voltage detector features high/low sensitivity modes alongside visual and audible alerts to safely sense live wires without contact.
- Rapid Clamp Measurement: Engineered with an ultra-sensitive, high-capacity clamp jaw configuration designed for quick and safe high-amperage current readings up to 1200A.
Applications
:- Industrial electrical troubleshooting and commercial facility maintenance.
- Residential wiring diagnostics, panel installations, and domestic appliance repairs.
- HVAC system testing and high-amperage automotive electrical work.
- Safe non-contact checking of outlets, switches, and circuit breakers.
Usage
:- Select the correct tool from the kit based on your specific diagnostic task (voltage detection, circuit multimeter testing, or high-current clamping).
- Install the provided LR03 AAA alkaline batteries into the designated battery compartment of each tool before turning them on.
- Use the VD210003 Voltage Detector near outlets or cables to instantly verify if a line is live via the built-in sound and light alarms.
- Turn the dial of the DM110004 Multimeter to the desired setting (Voltage, Current, or Resistance) and plug in test leads to measure circuit components.
- Open the jaw of the DCM610002 Clamp Meter and isolate a single wire within the clamp head to read live high currents safely up to 1200A without breaking the circuit.
- Turn off all testing equipment after use to conserve battery life and store them in a dry location.
