Brand: Made in India

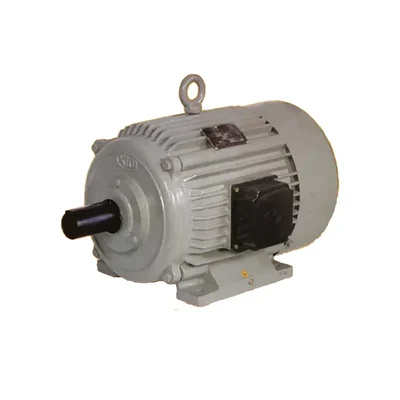

Heavy Duty (3 HP) Three Phase 4 Pole AC Induction Motor With ISI Mark(1 year warranty)
SKU: SR-XLO-20223719
Price : ₹14399 (Including GST)
Get extra ₹432 Discount (On Checkout)
Qty:
Easy Returns
Quality Assurance
Trusted Delivery
After Sales Assistance
Short Description
(3 HP) Three Phase 4 Pole AC Induction Motor
0.77 Power Factor,1420 RPM
81% Efficiency
Description
Heavy Duty (3 HP) Three Phase 4 Pole AC Induction Motor With ISI Mark(1 year warranty)
Description :
- A stator and a rotor make up a 3-phase induction motor. While the rotor has a short-circuited winding known as rotor winding, the stator carries a three-phase stator winding. The three-phase supply powers the stator winding. Through electromagnetic induction, the rotor winding receives its voltage and power from the stator winding, thus the name.
Applications :
- Used as prime mover for all kinds of machine tools such as lathes,drills,grinders etc.
- Used for compressors,lifts,hoists,cranes,extrudes etc.
- Used for running bare pumps for domestic,industrial or agricultural purpose.
Specifications :
- Product Name : 3 phase A.C Induction Motor
- Brand : Made In India
- Power : 3 HP/2.20 KW
- Number of Pole : 4
- Frame Size : 100L
- Insulation class : B
- Speed : 1420 RPM
- Current : 5.0 AMP
- Efficiency : 81%
- Power Factor : 0.77
- Motor Weight : 33 Kg(Approx)
