Brand: Kirloskar

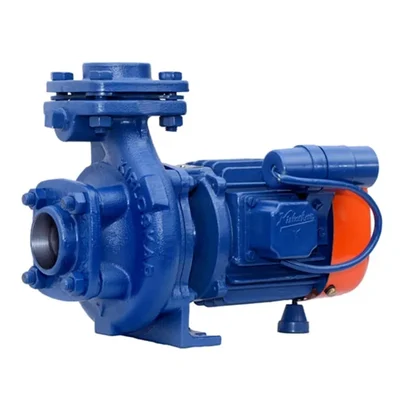

Kirloskar 3Hp 1Phase Centrifugal Monoblock Pump, 1200 LPM Max. Discharge, Size 100x100 mm (KDS-312) - 1 Year Warranty
SKU: TI-KK-14632
22 people have bought this recently
Delivery By: Feb 5 - Feb 7
MRP : ₹25000 ₹19619
22% OFF!
22 people have bought this recently Delivery By: Feb 5 - Feb 7 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹19619 (Including GST)
MRP : ₹25000
22% OFF!
Get Extra ₹294 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Kirloskar 3Hp Monoblock Pump, 100 x 100 mm (KDS-312)
Single Phase Connection
10M Max. Head, 1200 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specifications
- Brand: Kirloskar
- Power : 3 hp
- Weight (Approx.) : 48.5 kg
- Flow Rate : 1200 lpm
- Head : 10 meter
- Model No. : KDS-312
- Product Type : Monoblock Pump
- Brand : Kirloskar
- Power : 2.2 kW
- No. Of Pole : 2
- Rated Voltage : 200 V, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- Head Range : 4 to 10 Meter (13 to 33 Feet)
- Pipe Size (Suction x Delivery) : 100 x 100 mm
- Discharge Rate : 1200 to 600 LPM (72000 - 36000 LPH)
- Insulation : B / F Class
- Protection : IP 44 / IP 55
Material Of Construction :
- Impeller : Cast Iron/Noryl
- Delivery Casing : Cast Iron
- Motor Body : Cast Iron
- Pump Shaft : Carbon Steel
- Sealing : Mechanical Seal
Description
The Kirloskar KDS-312 is a robust 3 HP single-phase centrifugal monoblock pump, ideal for high-volume water transfer with a maximum discharge of 1200 liters per minute. Featuring 100x100mm suction and delivery ports, it's designed for efficiency and comes with a 1-year warranty.
Features
:- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in case of low voltage.
- Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.
- TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
- CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
- Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations.
- High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
- Designed to Prevent Overloading : Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown.
Applications
:- Gardening and small farm irrigation
- Lawn sprinklers
- Water supply for high rise buildings
- Domestic and community water supply
- Water transfer and circulation
WARRANTY :
- 1 Year Onsite Warranty
