Brand : Kirloskar

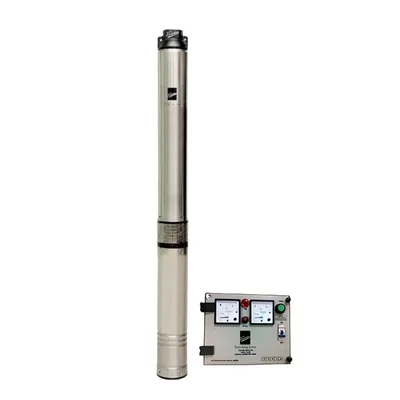

Kirloskar 3Hp 9 Stage(4 inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) - 2 Year Warranty
SKU : TI-KK-13374
MRP : ₹45000
₹29999
33% OFF!
-
1
+
790 people have viewed this recently
Get Extra ₹450 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar Borewell Submersible Pump With Control Panel
3 HP, Single Phase, Oil Cooled
50M Max. Head, 350 LPM Max. Discharge
2 Year Warranty
Country of origin: India
Specification
Description
Kirloskar 3Hp 9 Stage(4 inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) - 2 Year Warranty

Features :
  • High Efficiency And Energy Saving Design : Higher output, lesser power consumption.
  • Wide Voltage Design : The voltage range is 150 to 240 Volts. It protects the motor from burning due to lower/higher voltage.
  • Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation.
  • Designed To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
  • Lightweight And Compact Design : Constructed with special grade engineering materials, compact designs for ease of handling and installation.
  • Flatter Efficiency Curve : Minimal drop in efficiency during entire operating range, resulting in lower operating cost.
  • Suitable For Horizontal Applications : High capacity angular ball bearing motor construction suited to operate in the horizontal position.

Specification :
  • Model No : KP4 JALRAAJ UVA 250-3009 CP
  • Product Type : Borewell Submersible Pump
  • Brand : Kirloskar
  • Wattage : 2.20 kW
  • Electricity Connection : Single Phase
  • Voltage : 220 Volt, 50 Hz, AC Power Supply
  • Rated Current : 16 Amp.
  • Cooling Type : Oil Filled
  • No. Of Stage : 8
  • Outlet Size. : 50 mm
  • Head Range : 50 to 14 Meter (164 to 46 Foot)
  • Discharge Range : 0 to 350 LPM (0 to 21000 LPH)
  • Borewell Size : 100 mm(4 inch)
  • Insulation : F Class
  • Protection : IP 68
  • Winding Material : Copper

Material Of Construction :
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Motor Bearing : Ball Bearing
  • Pump Bushes : NBR
  • Impeller : Noryl
  • Diffuser : Noryl
  • NRV : Cast Iron
  • Suction : Cast Iron

Accessories :
  • Control Panel

Areas Of Application :
  • Domestic and community water supply
  • Water supply for high rise building
  • Gardening and small farm irrigation
  • Construction site
  • Groundwater supply to waterworks

Warranty :
  • 2 Year Warranty.
