Brand: Cowtools
COWTOOLS 3 HP Chaff Cutter/Grass Cutter Machine With 400-1200 Kg/hr Cutting Capacity
SKU: TI-C3-17998
₹26800 (Including GST)
Get extra ₹402 Discount (On Checkout)
Delivery By: May 29 - May 31
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
COWTOOLS Chaff Cutter/Grass Cutter Machine
3 HP Motor, 400-1200 Kg/hr Cutting Capacity
Country of origin: India
Description

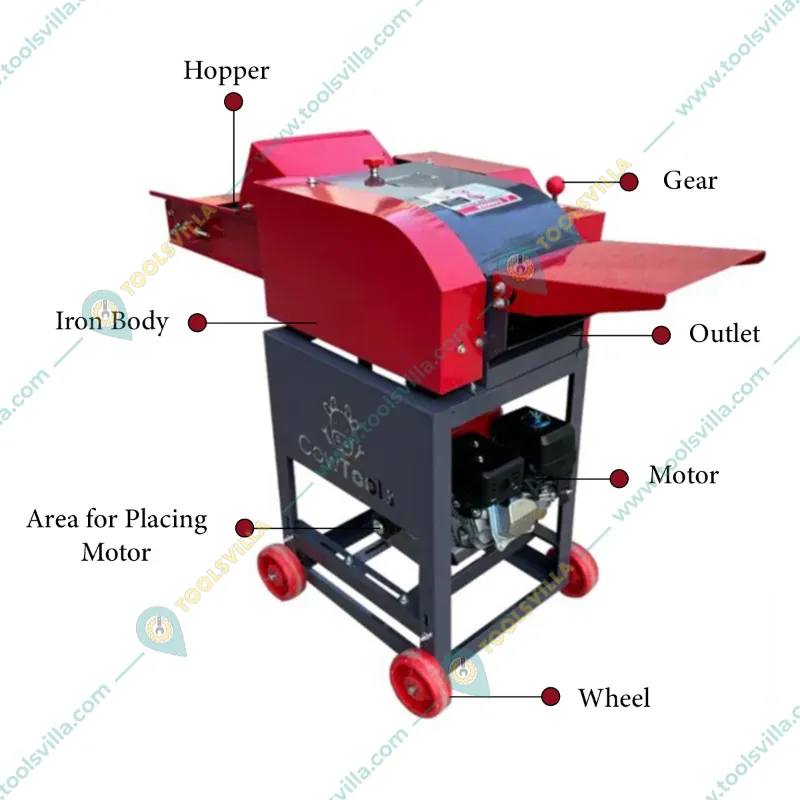

COWTOOLS Chaff Cutter/Grass Cutter/Kutti Machine is a piece of equipment designed for cutting straw or hay into small pieces before mixing it with other forage and fed to cattle. This Chaff Cutter is a must have machine in agriculture and dairy farming because the primary use is to prepare fodder for animals by utilizing waste materials such as straw, hay, etc. This machine cuts the materials into fine pieces which is later on mixed with other forage making it suitable for consumption of cattle. This process aids the digestion of the animals and prevents them from rejecting any part of their meal. The machine is powered by a 3 HP electric motor and consists of 4 blades which can achieve the cutting capacity mark of 400-1200 kilos per hour making it perfectly suitable for agricultural scenarios where there is a requirement of waste management and fodder preparation requirement at a higher scale.
Features
:- Cutting Mechanism: This Chaff cutter is equipped with high quality blades that are designed for longevity. These blades can efficiently cut through various types of fodder, including green and dry materials.
- Energy Efficiency: Designed to minimize energy consumption while maximizing output, these machines save time and labor costs associated with manual cutting.
- Simple Controls: Most modern chaff cutters have straightforward controls that make them easy to operate even for individuals with minimal training.
Specification
:- Brand: Cowtools
- Material : Iron
- Weight (Approx.) : 45 kg
- Motor Power : 3 HP
- Motor Speed : 2800 RPM
- Shaft Diameter : 24 mm
- No. of Blades : 4 Blades
- Cutting Capacity : 400-1200 Kg/hr
- After Cutting Size : 10-35 mm
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: The user needs to connect a motor to an appropriate power source, in order to start working.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications

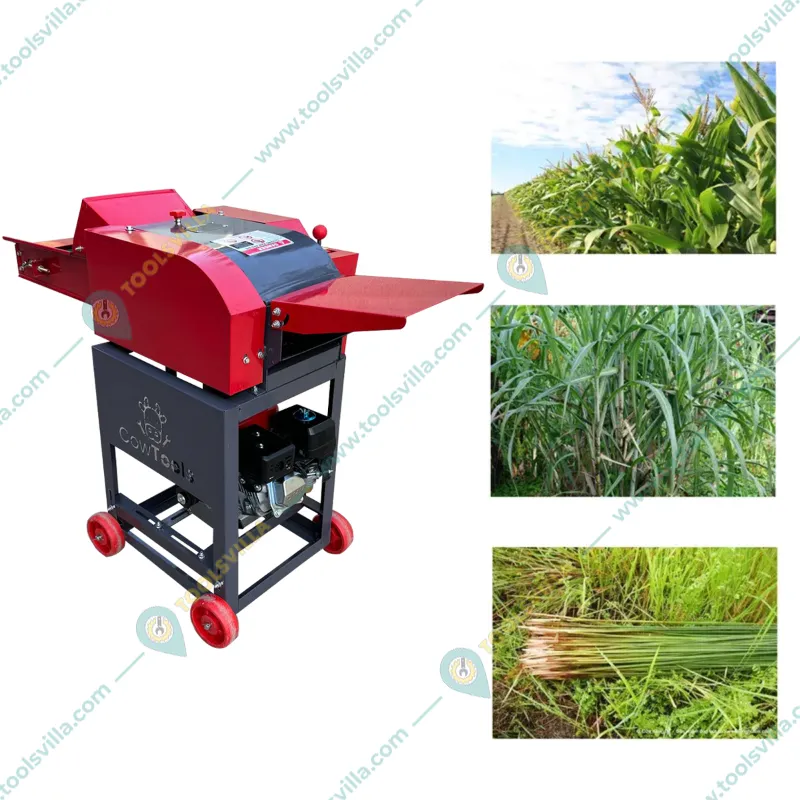

:- Fodder Preparation & Nutritional Enhancements: The Chaff cutter helps in the preparation of fodder for animals. The materials are cut into uniform pieces which retain the required nutrients in it.
- Time & Labor Savings: This machine not only helps in fodder preparation but also saves a lot of time by automating the process of cutting fodder and saving both time and labor.
- Waste Reduction: It helps in efficient waste management as no plant product is left out as waste. They are utilized by converting them into fodder for cattle.
- Feed Cost Management: The cost incurred behind purchasing feed for cattle is saved by using the chaff cutter, as it acts as a lone fodder production machinery and helps in converting green waste into fodder for cattle and other animals.
- Ensures Animal Health: As the chaff cutter helps in achieving uniform cutting size of the plant products which are used as fodder for the animals. It ensures that the animals don't reject any part of their meal which aids the digestion of the animals and is considered appropriate for their health and well-being.
