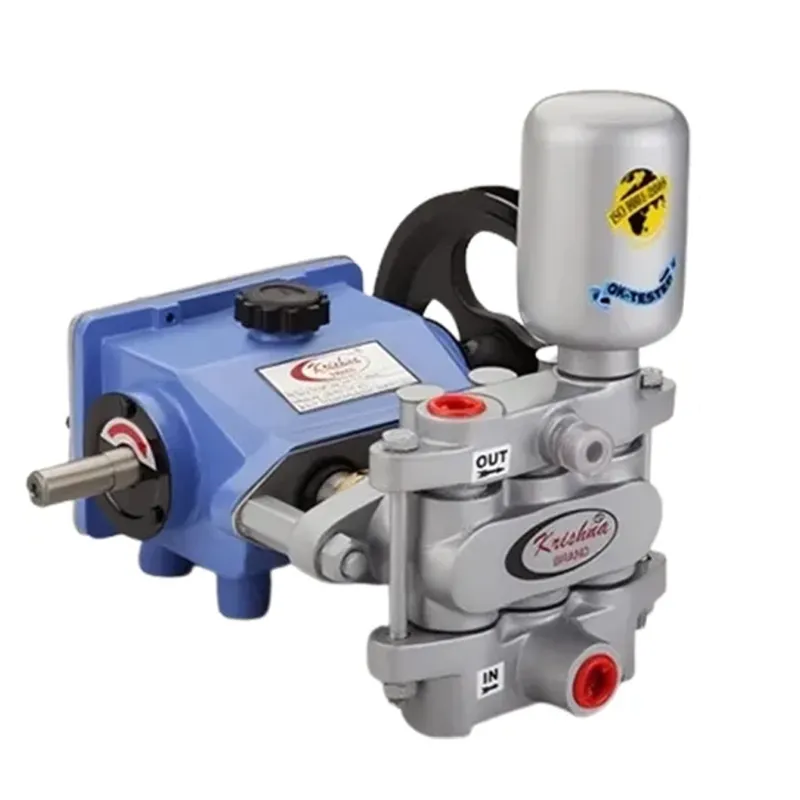

Krishna (KE-C3-35) Three Piston HTP Pump For Cleaning & Agricultural Spray
SKU : TI-K3-10613
MRP : ₹14340
₹10240
29% OFF!
-
1
+
Get Extra ₹154 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Three Piston HTP Pump
1440 RPM Electric Motor
700 PSI (50 Kg) Maximum Pressure
Country of origin: India
Specification
  • Brand: Krishna
  • Weight (Approx.) : 20 kg
  • Model Number : KE-C3-35
  • Number of Piston : 3
  • Normal Working Pressure : 0-500 PSI(35Kg./cm²)
  • Maximum Pressure : 700 PSI (50 Kg)
  • Pump RPM : 540 RPM
  • Suction Capacity : 35 LPM
  • Motor Power : 3 HP
  • No-Load Speed : 1440 RPM
  • V-Belt Size : B-36
  • Main Body Material : Cast Iron
  • Head Material : Cast Iron
  • Piston Material : Stainless Steel
  • NRV Material : Stainless Steel
  • Stroke Length : 20 mm
  • Piston Diameter : 30 mm
Warranty :Pump warranty against manufacturing problem
Note : Colour of the Product may Vary
Description
A 3 HP Three Piston HTP (High-Pressure Triplex) Pump is a type of positive displacement reciprocating pump powered by a 3 horsepower motor and characterized by having three pistons or plungers. These pistons work in a synchronized reciprocating motion within individual cylinders to generate a high-pressure flow of liquid.

Features

 :
  • High Pressure Output: This is a primary feature, enabling effective spraying, cleaning, and other high-pressure applications. The exact pressure rating will vary by model but is typically in the range of hundreds to thousands of PSI
  • Significant Flow Rate: The 3 HP motor provides the power to move a substantial volume of fluid per minute, allowing for efficient coverage or faster task completion. Flow rates can range from 10 liters per minute upwards.
  • Adjustable Pressure: This models come with a pressure regulator that allows you to adjust the output pressure according to the specific task requirements. This provides versatility for different applications.

Accessories

 :
  • Pump stand
  • Pump pulley
  • Motor pulley
  • Piston ring set
  • Nozzle set
  • 1-Set Tools kit
