Short Description
Electric Winch Machine
500-1000 kg load capacity
3 hp copper winding motor, 220 V
8mm, 40-meter wire rope

Country of origin: China
Specification
Description

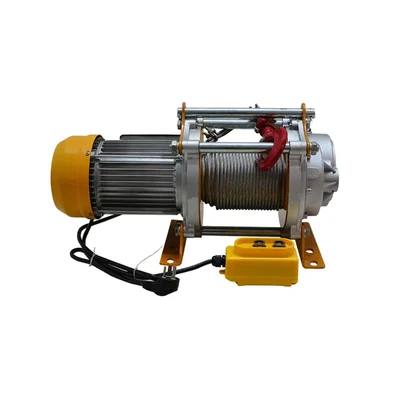

HT 500-1000 Kg 3 hp KCD Electric Winch With 8 MM, 40 Meter Wire Rope

Description :
  • A motorized tool called an electric winch is used to wind up or wind down a wire rope, or to change the tension in other ways. Winches are the central component of larger versions of a wide range of machinery, including elevators, steam shovels, and tow trucks.

Features :
  • Lifting
  • Pulling
  • Positioning Of Loads

Specifications :
  • Product Type : Electric Winch Machine
  • Brand : HT
  • Winding : 100% Copper
  • Motor power : 3 hp
  • Phase : Single
  • Voltage : 220 V
  • Frequency : 50 Hz
  • Wire Rope Length : 40 meter
  • Wire rope Thickness : 8 mm
  • Lifting Capacity (Single/Double-Wire Rope) : 500/1000 kg
  • Lifting Height Single Hook : 20 meters
  • Lifting Height Double Hook : 40 meters
  • Lifting speed (Single/Double -Hook) : 7/14 meters per minute
  • Continuous Working Capacity : 2 hrs. (Approx.)

Usage/Application :
  • Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.

In the Box :
  • 1 x Electric Winch
  • 1 x Eye Hook
  • 1 x Wire Rope
  • 1 x Remote
  • 1 x Voltmeter

Note :
  • The video shown is for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.
