Brand: Kirloskar
Kirloskar 3Hp Three Phase Openwell Pump, 20m Max Head, 768 LPM, 65x50mm (KOS-318) - 1 Year Warranty
SKU: TI-K3-34310
₹31199 (Including GST)
MRP : ₹40049
Get extra ₹468 Discount (On Checkout)
Delivery By: May 6 - May 8
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

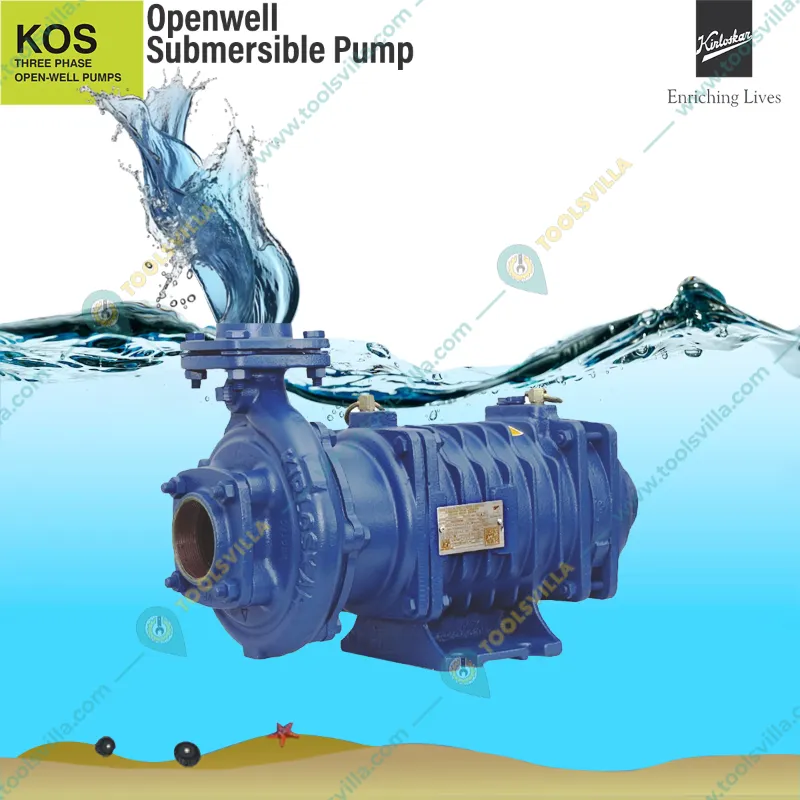

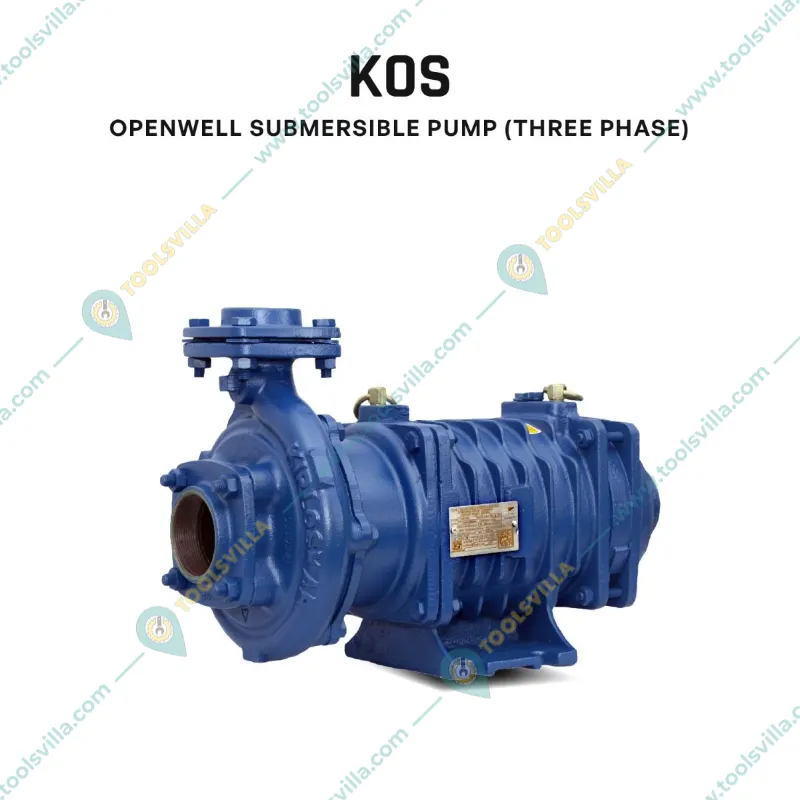

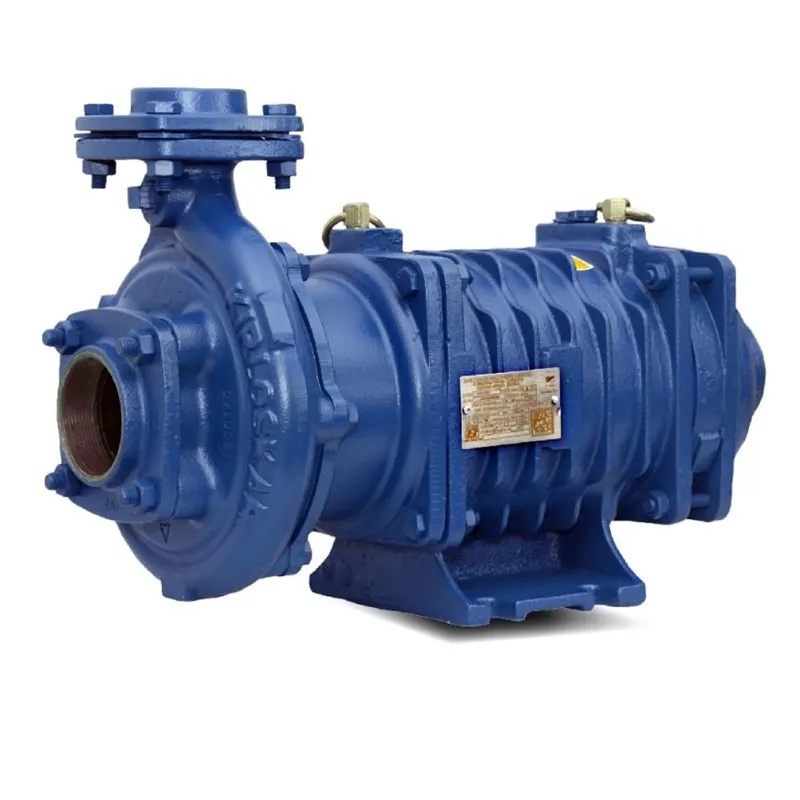

Kirloskar 3 Hp Three Phase Openwell Submersible Pump
65x50mm Pipe Size
20m Max. Head, 768 LPM Max. Flow
1 Year Warranty
Country of origin: India
Description
Three phase 3 Hp Kirloskar open well submersible pump is designed to withstand wide voltage fluctuations from 350 to 440 Volts and reduces motor burning in case of low voltage. These openwell submersible pumps are suitable for Industrial water Supply Schemes, domestic and Community Water Supply, construction sites, irrigation in horticulture and agriculture, water supplies for high-rise buildings etc.
Features
:- Wide Voltage Design : The motor is designed to withstand wide voltage variation from 200 to 440 volts and reduces motor burning in case of low/high voltage
- Flatter Efficiency Curve : Minimum variations in efficiency during entire operating range increases the utility of pump set for variable conditions
- Dynamically Balanced Rotating Parts : Minimum vibration protects the components from damage during the operation, thus ensuring consistent performance as concentricity is maintained
- Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump
- Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that the pump can be serviced even at remote locations by semi-skilled technicians
- CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated
- High Efficiency and Energy Saving Design : Innovative design manufactured at state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings
- Advanced Water Cooled Motors Designs : The motor is filled with potable water which protects it from overheating and facilitates smoother and trouble free operation for years
Specification
:- Brand: Kirloskar
- Power : 3 hp
- Weight (Approx.) : 65 kg
- Flow Rate : 768 lpm
- Head : 20 meter
- Model No. : KOS-318
- Product Name : Openwell Submersible Pump
- Wattage : 2.2 kW
- Electricity Connection : Three Phase
- Rated Voltage : 380 Volt, 50 Hz
- Pipe Size : 65x50 mm
- Head Range : 8 to 20 Meter (26 to 65 Feet)
- Discharge Range : 768 to 288 LPM (12.8 to 4.8 LPS)
- No of Stages : 1
- Minimum Submergence From Bottom : 1000 mm
- Impeller Material : Cast Iron
- Delivery Casing : Cast Iron
- Motor Body : Cast Iron
- Pump Shaft : Stainless Steel
Applications
:- Industrial water Supply Schemes,
- Domestic and Community Water Supply,
- Construction sites,
- Irrigation in horticulture and agriculture,
- Water supplies for high-rise buildings etc.
WARRANTY :
- 1 Year Onsite Warranty
