80x80mm Pipe Size
16m Max. Head, 960 LPM Max. Flow
1 Year Warranty
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Kirloskar

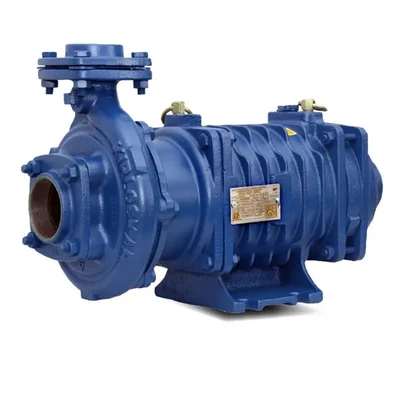

Kirloskar 3Hp Three Phase Openwell Pump, 16m Max. Head, 960 LPM, 80x80mm (KOS-314) - 1 Year Warranty
SKU : TI-K3-34309
MRP : ₹40049
₹31199
22% OFF!
-
1
+
Delivery By: Jun 19 - Jun 21
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Kirloskar 3 Hp Three Phase Openwell Submersible Pump
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 3 hp
- Weight (Approx.) : 65 kg
- Flow Rate : 960 lpm
- Head : 16 meter
- Model No. : KOS-314
- Product Name : Openwell Submersible Pump
- Wattage : 2.2 kW
- Electricity Connection : Three Phase
- Rated Voltage : 380 Volt, 50 Hz
- Pipe Size : 80x80mm
- Head Range : 8 to 16 Meter (26 to 52 Feet)
- Discharge Range : 960 to 300 LPM (16 to 5 LPS)
- No of Stages : 1
- Speed : 2890 RPM
- Minimum Submergence From Bottom : 1000 mm
- Impeller Material : Cast Iron
- Delivery Casing : Cast Iron
- Motor Body : Cast Iron
- Pump Shaft : Stainless Steel
Description
Three phase 3 Hp Kirloskar open well submersible pump is designed to withstand wide voltage fluctuations from 350 to 440 Volts and reduces motor burning in case of low voltage. These openwell submersible pumps are suitable for Industrial water Supply Schemes, domestic and Community Water Supply, construction sites, irrigation in horticulture and agriculture, water supplies for high-rise buildings etc.
Features
:- Wide Voltage Motor Designs : The Motor are designed to withstand wide voltage fluctuations from 350 to 400 Volts and reduces motor burning in case of low voltage
- Flatter Efficiency Curve : Minimum variations in efficiency during the entire operating range increase the utility of pump set for variable conditions
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damage during operation, resulting in consistent performance as concentricity is maintained
- Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump
- Easy Maintainable Designs : Easily maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians
- CED coating : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life
- High Efficiency and Energy Saving Design : Innovative design manufactured at state of the art, plant ensures optimum efficiency and lower energy consumption resulting in significant cost saving
- Advanced Water Cooled Motors Designs : The motor is filled with portable water, protects from overheating and facilitates smoother and trouble free operations for the years
Applications
:- Industrial water Supply Schemes,
- Domestic and Community Water Supply,
- Construction sites,
- Irrigation in horticulture and agriculture,
- Water supplies for high-rise buildings etc.
WARRANTY :
- 1 Year Onsite Warranty
