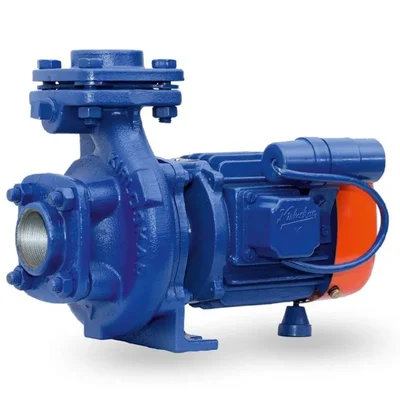

Kirloskar 3 Hp Single Phase Centrifugal Monoblock Pump

26m Max Head, 540 LPM Max. Discharge

65 x 50 mm Pipe Size

1 Year Warranty

Country of origin: India

Brand: Kirloskar
Power : 3 hp
Weight (Approx.) : 57 kg
Flow Rate : 540 lpm
Head : 26 meter

Model No. : KDS 325
Product Type : Centrifugal Monoblock Pump
Wattage : 2.2 kW
Power : 230 V, 50 Hz, AC Supply
Electricity Connection : Single Phase
Head Range : 10 to 26 Meter (32 to 85 Feet)
Discharge Rate : 32400 to 14400 LPH (9 to 4 LPS)
Protection : IP 44
Insulation : B Class
Pipe Size (Suction x Delivery) : 65 x 50 mm
Winding Material : Copper

Material of Construction :

Impeller : Cast Iron
Delivery Casing : Cast Iron
Motor Body : Cast Iron
Pump Shaft : Carbon Steel
Sealing : Mechanical Seal

A centrifugal monoblock pump is a type of pump that integrates both the motor and the pump into a single, compact unit. Centrifugal monoblock pumps operate on the principle of converting rotational energy from the motor into kinetic energy in the fluid. Centrifugal monoblock pumps are widely used across various sectors like Agriculture, Domestic, Industrial use due to their reliability and efficiency

Features

Wide Voltage Design : The motor is designed to withstand wide voltage variation which reduces motor burning in case of low/high voltage
Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance, thereby extending the life of the pump
Thermal Overload Protector : The pump set features a Thermal Overload Protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault currents
Cathodic Electro Deposition : CED is the latest coating technology with a uniform coating for corrosion resistance. It provides 5 times more protection than conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated
Automatic Air Release : Automatically releases air when the pump starts ensuring swifter and smoother operations, thus eliminating the necessity of operating air release cock
High Efficiency and Energy Saving Design : Innovative design manufactured at state of a art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings
Designed to Prevent Overloading : There are fewer chances of motor burning even if the pump operates at a lower head than recommended as the motor does not get overloaded thus ensuring substantial savings from maintenance costs and breakdown.
