Brand: Kirloskar

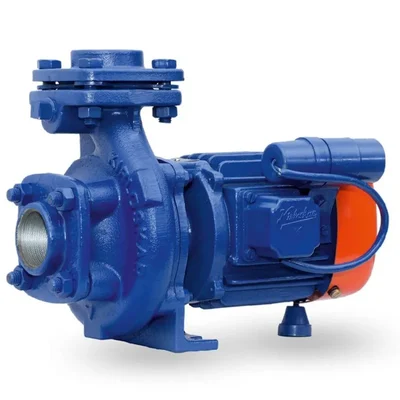

Kirloskar 3 HP Single Phase Centrifugal Monoblock Pump, 15m Max. Head, 64800 LPH, 80x80 mm (KDS-314) - 1 Year Warranty
SKU: TI-K3-52365
Delivery By: Dec 16 - Dec 18
MRP : ₹39050 ₹29499
24% OFF!
Delivery By: Dec 16 - Dec 18 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹29499 (Including GST)
MRP : ₹39050
24% OFF!
Get Extra ₹442 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Kirloskar 3 HP Single Phase Monoblock Pump (KDS-314)
1080 LPM Max. Discharge, 15 Meter Max. Head Range
1 Year Warranty
Country of origin: India
Specifications
- Brand: Kirloskar
- Power : 3 hp
- Weight (Approx.) : 68 kg
- Flow Rate : 1080 lpm
- Head : 15 meter
- Model No. : KDS-314
- Product Name : Centrifugal Monoblock Pump
- Wattage : 2.2 kW
- Power : 230 V, 50 Hz, AC Supply
- Electricity Connection : Single Phase
- Head Range : 26 to 49 Feet (8 to 15 meters)
- Discharge Rate : 64800 to 28800 LPH (18 to 8 LPS)
- Protection : IP 44
- Pipe Size (Suction x Delivery) : 80 x 80 mm
Materials of Construction :
- Impeller : Cast Iron/Noryl
- Delivery Casing : Cast Iron
- Motor Body : Cast Iron
- Pump Shaft : Carbon Steel
- Sealing : Mechanical Seal
Description
Centrifugal monoblock pumps are frequently utilized in a variety of settings, including irrigation and water supply. The centrifugal force theory explains the operation of these pumps; as the impeller rotates, a centrifugal force is created that pushes the liquid toward the pump casing's outer edges, increasing pressure and flow rate.
Features
:- High Efficiency & Energy Saving Design : This monobloc pump has a higher output at lesser operating cost and longer life
- Design to Prevent Overloading : Protects from overloading & trouble free operations for the years
- Wide Voltage Design : This monobloc pump has the capacity to operate from 180 to 240 volts
- Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations
- CED coating : Provides 5 times more protection from corrosion over conventional painting
Applications
:- Gardening and small farm irrigation
- Lawn sprinklers
- Water supply for high rise buildings
- Domestic and community water supply
- Water transfer and circulation
Warranty :
- One Year Onsite Warranty.
