Brand: RBD

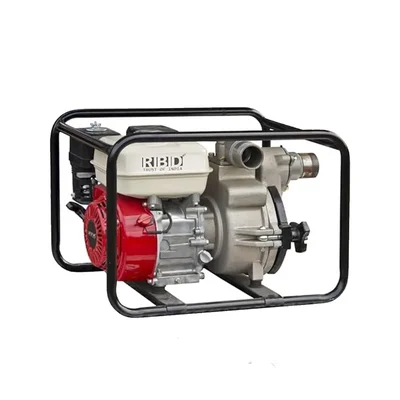

RBD 3 inch 4 Stroke Air Cooler Water Pump for Water Supply at Home/Farm/Construction Site with 2 Year Warranty
SKU: TI-R3-15816
3 people have bought this recently
Delivery By: Dec 29 - Dec 31
MRP : ₹14300 ₹10950
23% OFF!
3 people have bought this recently Delivery By: Dec 29 - Dec 31 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹10950 (Including GST)
MRP : ₹14300
23% OFF!
Get Extra ₹164 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
RBD 3 inch (7.62 cm) Water Pump
3600 RPM Speed
3.6 L Fuel Tank Capacity
Country of origin: India
Specifications
- Brand: RBD
- Power : 6.5 hp
- Weight (Approx.) : 20 kg
- Fuel Used : Petrol
- Displacement : 196 cc
- Stroke : 4
- Material : Cast Iron
- Motor Speed : 3600 RPM
- Fuel Tank Capacity : 3.6 L
- Fuel Consumption : 750 ml/hr
- Output Flow : 1000 LPM
- Fuel Used : Petrol
- Suction Head : 6 meter
- Maximum Delivery Distance : 30 meter
- Suction Size : 3 inch (80 mm)(7.62 cm)
- Suitable for : Agriculture
Note : 2 Years Warranty On Manufacturing Defects Only.
Description
RBD Water Pump is used for agriculture, irrigation, water logging, commercial buildings, gardening, hotels etc. It is powered by a 4 stroke air cooled engine. It is used to move liquid from one area to another. It can be used to pump water from a lower elevation to a higher elevation, or to pump out floodwaters, water from a well, or water from a pool or lake. Water pumps are powered by either an electric motor or a gasoline engine and can be used for a variety of tasks. It is made of cast iron.
Features
:- Potable Design : It is designed to handle the most toughest jobs like irrigating a field, draining a pool in no time, pump out a flooded trench, fill or empty a water storage tank.
- Extra Lifting Capacity: It has higher suction power and give high discharge in its operating range.
- Highly efficient, energy-saving, lightweight, and compact easily maintainable design that is required in irrigation.
Applications
:Use for Water Supply at Home, Farm, Construction Site, Industrial Site, Drainage Control
Usage
:Before you start:
- Fill the tank with unleaded petrol
- Attach the suction hose to the pump's intake and the delivery hose to the outlet.
- Ensure all connections are secure and leak-free.
- You prime the pump by filling it with water through the priming plug. This removes air and prepares it to draw water effectively
Starting the Engine:
- Ensure the fuel valve is open, allowing petrol to flow to the engine .If the engine is cold, engage the choke.
- Pull the recoil starter cord gently until you feel resistance, then give it a sharp tug.
- Repeat until the engine starts.
- Once the engine starts, gradually disengage the choke as it warms up.
- Adjust the throttle to control the water flow rate
**Turn off the engine and allow it to cool before refueling.
