Brand: Jadever

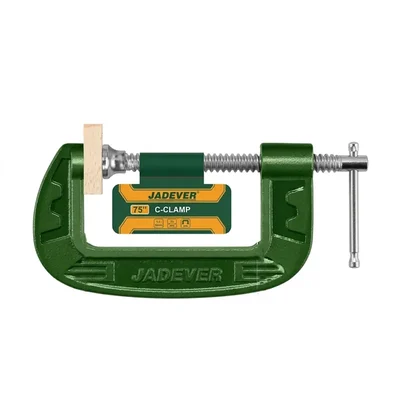

Jadever 3 inch 75mm Heavy Duty Cast Iron Body T-Shaped Thread Professional G-Clamp JDCP1103
SKU: TI-J3-67836
Estimated Delivery By: Apr 17 - Apr 19
MRP : ₹408 ₹340
17% OFF!
Estimated Delivery By: Apr 17 - Apr 19 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹340 (Including GST)
MRP : ₹408
17% OFF!
Get Extra ₹5 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
A professional 3-inch (75mm) Jadever G-clamp (JDCP1103) with a heavy-duty cast iron body and T-shaped thread for high-torque clamping in woodworking and industrial tasks.
Country of origin: Taiwan, Province of China
Specifications
- Brand: Jadever
- Weight (Approx.) : 480 gm
- Net Quantity : 1 pc
- Size : 3 inch
- Model Number: JDCP1103
- Clamp Type: G-Clamp (C-Clamp Style)
- Size/Opening Capacity: 3 Inches (75mm)
- Body Material: High-Grade Cast Iron
- Screw Thread Type: T-Shaped (High-Torque)
- Handle Type: Sliding Steel T-Bar
- Pressure Pad: Swivel Type Base
- Packaging: Paper Card
Description
Professionals that want durability and dependability are the target market for the Jadever JDCP1103. Because the "G" style frame is made of premium molten iron, it can withstand strong clamping forces without deforming. The T-shaped threaded screw, which is the tool's main component, provides a greater surface area for the threads to engage than ordinary V-threads, giving it a far longer lifespan and smoother operation. Its small 75mm size strikes the ideal combination between portability and industrial gripping power, making it ideal for bench-top work. The frame is a dependable partner for many years to come since it is coated with a protective coating that resists rust and workshop chemicals.
Features
:- Reinforced Cast Iron Frame: Even under the highest mechanical pressure, the body stays true and rigid thanks to the high-tensile casting technique.
- Heavy-Duty T-Shaped Thread: Specifically designed to withstand high torque, this thread offers excellent grip and keeps the screw from backing off during vibrations.
- Swivel Pressure Pad: For uniform pressure distribution, a pivoting pad at the screw's end automatically adjusts to the workpiece's surface.
- Steel Sliding T-Bar Handle: Even in tight spaces or corners, the user may effortlessly apply maximum leverage thanks to the integrated sliding handle.
- Corrosion Resistant Finish: To stop corrosion and oxidation in damp or outdoor conditions, an industrial-grade coating is applied to the body.
Applications
:- Woodworking: Securing wood to a workbench for accurate sawing and sanding, or holding wood joints for glueing.
- Clamping metal sheets, angles, or profiles together for drilling, grinding, or mild welding is known as metalworking.
- Automotive Repair: Giving mechanical components a firm grip while adhesive bonds cure or during assembly.
- Clamping fragile chair rungs or table frames while performing repairs is known as furniture restoration.
- Jig construction: Supporting the installation of stop-blocks, guide rails, or personalized templates on stationary power tools.
Usage
:- Place the G-clamp such that the swivel pad is on one side of the workpiece and the stationary anvil is on the other.
- To adjust, slide the T-bar handle and turn the screw till the pad touches the material.
- Tightening: Turn the handle clockwise to apply hard pressure. A strong, seamless lock is guaranteed by the T-shaped thread.
- Surface Protection: Put a tiny piece of rubber or wood between the clamp pads and the workpiece if the surface is finished or delicate.
- Maintenance: Keep metal shavings and sawdust out of the T-shaped threads. A light drop of machine oil on the threads once a month will ensure effortless operation.
