Brand: SUJAY

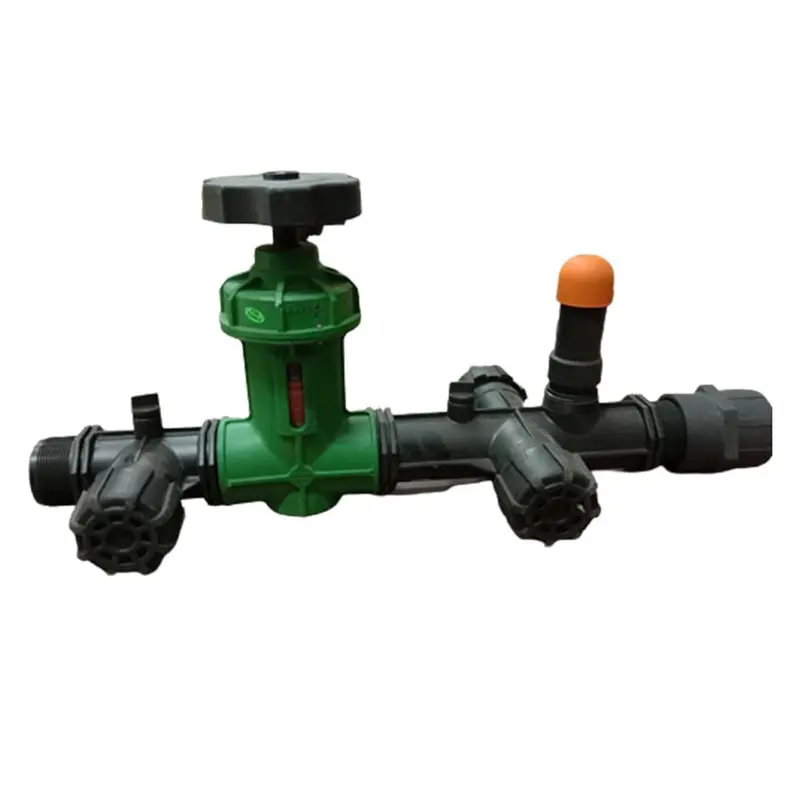

3 inch Header Assembly Threaded with Throttle Valve with 3 inch(7.62 cm) Inlet and Outlet Manifold
SKU: JS-HA-2021215
MRP : ₹4920
Offer Price : ₹4100 (Including GST)
Get extra ₹62 Discount (On Checkout)
Delivery By: Oct 15 - Oct 17
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
3 inch (7.62 cm approx) Throttle Valve with Header Assembly
Plastic Control Throttle Valve
Female Threaded Type
Country of origin: India
Description
3 inch Header Assembly Threaded with Throttle Valve with 3 inch(7.62 cm) Inlet and Outlet Manifold
Description :
- Throttle valves are designed to regulate the supply of a fluid (as steam or gas and air) to an engine and operated by a hand wheel, a lever, or automatically by a governor especially.
Features :
- Multi turn Linear motion throttle valve.
- End connections: Female Threaded type
- Max. Pressure : 6 Bar/ 85 Psi
- Straight through flow with minimal pressure loss
- Its slow operation prevents water hammer
- Visual float position indicator to show us % throttle of piping system
- Steel Rod inserted in full length during injection moldings of Shaft made of Reinforced Nylon, that gives excellent strength without breakage during rough usage.
- Float Body profile is matched by CNC machines for smooth operation and keeping the leakage under permissible limit during complete shut off.
- Dowel pin inserted in the shaft to prevent extra travel of float which do not transfer load on during extra tightening by farmers. This prevents breakage of cap.
- During assembly of throttle valve, 2 nos. lock pins inserted to avoid any slippage or loosening of threads of throttle valve cap..
- Maintaining seat leakage permissible limit as per standard ANSI/FCI-70-2-2006 in Class III (0.10%).
- Chemical / Corrosion resistant, Color UV stabilized
Specifications :
- Model No. : HT-56
- Product Type : Throttle Valve
- Brand : SUJAY
- Size : 3 Inch /80 mm/ (7.62 cm approx)
- Thd./In : 11 BSP & 8 NPT
- Body : Reinforce PP
- Flange, Disc, Handle : Reinforce PA
- Cylinder : Reinforce PP
- PC Housing : Polycarbonate
- Shaft : Reinforced PA+MS
- Shaft O-Ring : NBR
- Bottom & Sleeve Gasket : NBR
- Handle Screw : MS
- Teflon Seal Big & Small : Teflon
- Housing Gasket : NBR
- Locking Pin : SS-304
- Dowel Pin (4*30) SS : SS-304
Included components:
- 3 inch (7.62 cm approx) Manifold inlet and outlet
- 3 inch (7.62 cm approx) Port open both side threaded
- 3 inch (7.62 cm approx) Single union pp ball valve
- 3 inch (7.62 cm approx) socket threaded
- 3 inch (7.62 cm approx) Throttle Valve
