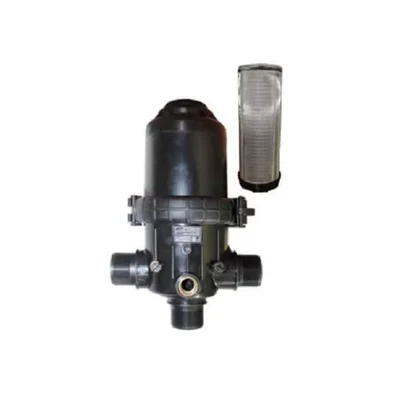

KSNM 3 inch Screen Filter with 50 m3/h Capacity for Separation and Holding of Dirt in an Irrigation System
SKU : TI-K3-47165
MRP : ₹4000
₹3020
25% OFF!
-
1
+
Get Extra ₹45 OFF on Prepaid Orders
Delivery By: Nov 11 - Nov 13
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
3 inch Screen Filter with 50 m3/h capacity
Country of origin: India
Specification
  • Brand: KSNM
  • Weight (Approx.) : 6 kg
  • Inlet/Outlet Size: 3 inch (80 mm)
  • Maximum Flow Rate: 50 cubic meters per hour
  • Filtration Mesh Size: 120 microns (120 mesh)
  • Filtration Surface Area: Approximately 1108 cm²
  • Material: Corrosion-proof polypropylene body with stainless steel mesh
  • Installation: Suitable for vertical and horizontal positioning, inline or angular
  • Maximum Operating Pressure: Typically up to 6 kg/cm² (estimated from similar models)
  • Weight: Around 5.5 to 6 kg
  • Resistant to common agricultural chemicals, fertilizers, and flushing agents
  • Equipped with a drain valve for flushing trapped impurities
  • Country of Origin: India
Description
KSNM 3 inch Screen Filter (50 m³/h) is designed to separate and retain dirt particles in irrigation systems, enhancing water filtration for efficient and uninterrupted irrigation. It features a durable polypropylene body with stainless steel screen mesh, a large filtration surface for high particle retention, and chemical resistance for use with agricultural water. The filter supports installation in any orientation and includes a drain valve for flushing accumulated impurities, enabling longer cleaning intervals and improved irrigation system longevity.

Features

 :
  • 3 inch (80 mm) inlet/outlet size for standard irrigation pipe compatibility
  • High filtration surface area for effective particle retention
  • 120 micron (120 mesh) stainless steel screen for dirt separation
  • Durable corrosion-proof polypropylene body
  • Compatible with agricultural chemicals, fertilizers, and flushing agents
  • Can be installed in any position: vertical or horizontal
  • Supports inline and angular inlet-outlet connections
  • Equipped with a drain valve for easy flushing of trapped debris
  • Low maintenance with longer cleaning intervals
  • Provides reliable filtration to protect irrigation system components
  • Lightweight (around 6 kg) for easy handling and installation
  • Suitable for drip irrigation, sprinkler systems, and agricultural applications

Accessories

 :

Applications

 :
  • Used for filtering irrigation water in agricultural fields to prevent clogging of drip emitters and sprinkler nozzles.
  • Suitable for sprinkler and drip irrigation systems to remove dirt, sand, and other suspended particles.
  • Ideal for protecting irrigation pipes, pumps, and valves from sediment and debris damage.
  • Can be used in garden irrigation and landscaping systems to ensure clean water flow.
  • Compatible with water containing fertilizers and agricultural chemicals due to corrosion-resistant construction.
  • Applied in irrigation systems requiring large flow rates (up to 50 m³/h) with high particle retention.
  • Useful in both vertical and horizontal pipeline installations with flexible connection options.
  • Enables extended operation cycles with longer intervals between cleanings through efficient flushing via drain valve.

Usage

 :
  • Install the filter inline or at an angle in the irrigation pipeline in either vertical or horizontal orientation.
  • Connect the 3 inch inlet and outlet securely with compatible irrigation pipes or fittings.
  • Use the drain valve to flush out accumulated dirt and debris regularly to maintain filter efficiency.
  • Position the filter for easy access to facilitate cleaning and inspection.
  • Ensure proper sealing to prevent leaks and maintain water flow.
  • Use with agricultural water containing fertilizers and chemicals, as the filter body resists corrosion.
  • Periodically remove and clean the stainless steel mesh screen to ensure optimal filtering.
  • Monitor flow rate and pressure to avoid exceeding the filter’s maximum rated capacity.
