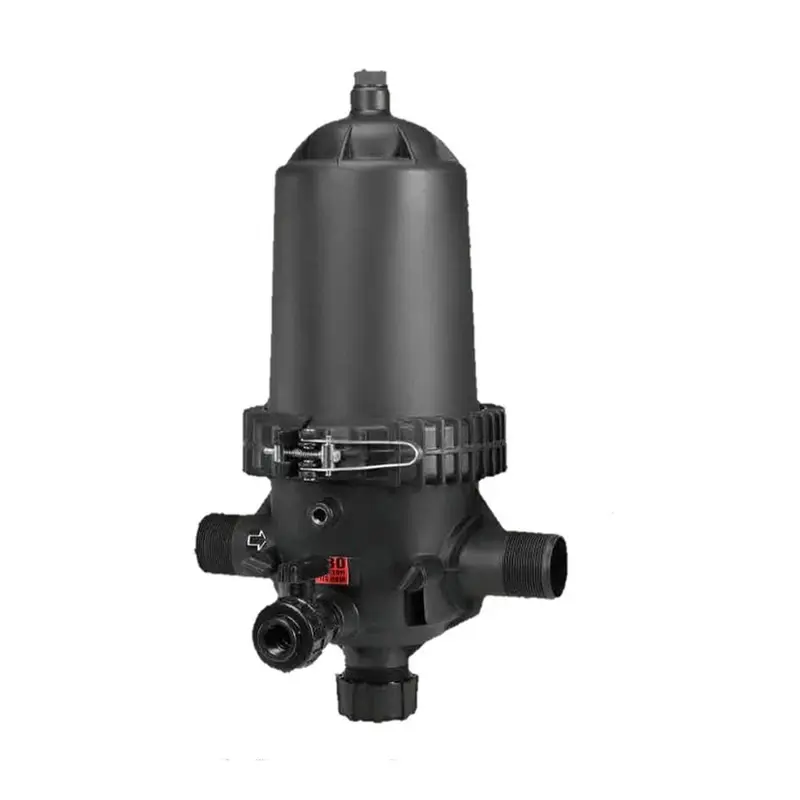

Automat(HT-135T) T Type 3 inch Disc Filter for Water Filteration

Brand: Automat

Automat(HT-135T) T Type 3 inch Disc Filter for Water Filteration

Name: Automat(HT-135T) T Type 3 inch Disc Filter for Water Filteration
Brand: Automat
SKU: JS-HA-2021202
Price: 6800 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: JS-HA-2021202

MRP : ₹8160 ₹6800

17% OFF!

522 people have viewed this recently

Get Extra ₹102 OFF on Prepaid Orders

Delivery By: Dec 22 - Dec 24

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹6800 (Including GST)

MRP : ₹8160

17% OFF!

Get Extra ₹102 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

T-Type Disc Filter (40m3/hr)

3 inch (7.62 cm approx) Size

Automat

Country of origin: India

Brand: Automat

Model No : HT-135T
Inlet/ Outlet Connection : 3 Inch (7.62 cm approx) BSP/NPT Male Thread
Max. Operating Pressure : 6 kg/cm2
Range of Flow Rate : 35 -45 m3/hr
Max. Recommended Flow Rate : 40 m3/hr (667 Ltr/min)
Filtration Surface Area : 1193 cm2
Material of Construction : Reinforce Polypropylene
Cartridge Diameter : 14 mm
Cartridge Length : 400 x 2 mm
Filter Disc (standard) : 120 mesh PP Red disc (Single Removable cartridge)

3 Inch (7.62 cm approx) T-Type Disc filter (40m3/hr) in which flow passes from outside to inside of disc stake.
The filters are made from special chemically bonded polymer which are weather resistant.
Disc filter made with special Helix system which gives better performance and results.

Features

Du point Nylon Hybrid Clamp with SS Lock for high pressure operations.
PPGF Slip - on flange for easy installation (Optional)
Bigger drain port with 3/4" (1.905 cm approx) ball valve for quick drainage.
Disk filters are made with special Helix system which gives better performance and results.
