Brand : Automat

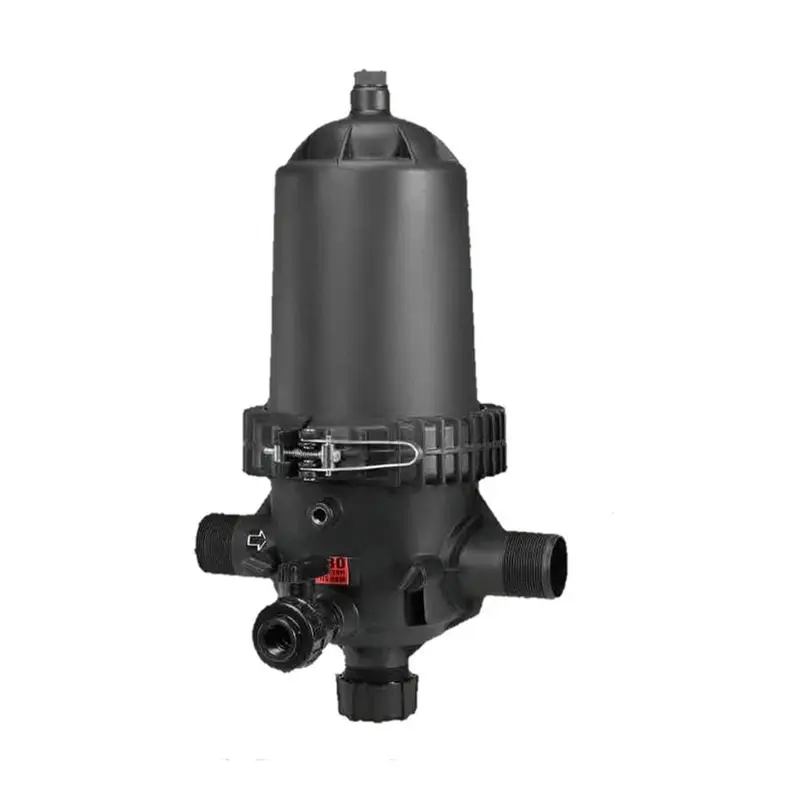

Automat HT-136T,3 inch T Type Disc Filter for Filtration
SKU : JS-HA-2021203
MRP :
₹5500
-
1
+
Get Extra ₹83 OFF on Prepaid Orders
Delivery By: Jun 22 - Jun 24
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
T-Type Disc Filter
3 inch (7.62 cm approx) Size
Range of Flow Rate 45 -52 m3/hr
Country of origin: India
Specification
  • Brand: Automat
  • Weight (Approx.) : 1.35 kg
  • Model No : HT-136T
  • Inlet/ Outlet Connection : 3 Inch (7.62 cm approx.)  BSP/NPT Male Thread
  • Max working Pressure (PPGF Filter) : 8 kg/cm2
  • Max Working Pressure (PA Filter) : 10 kg/cm2
  • Range of Flow Rate : 45-52 m3/hr
  • Nominal Flow Rate : 50m3/hr
  • Filtration Surface Area :1690cm2
  • Material : Glass Filled Polypropylene/ Polyamide.
  • Cartridge Diameter (With O-ring) : 122 mm
  • Cartridge Length : 515mm
Description
3 Inch (7.62 cm approx) T-Type Disc filter (50m3/hr) in which flow passes from outside to inside of disc stake.
The filters are made from special chemically bonded polymer which are weather resistant.
Disc filter made with special Helix system which gives better performance and results.

Features

 :
  • Du point Nylon Hybrid Clamp with SS Lock for high pressure operations.
  • PPGF Slip - on flange for easy installation (Optional)
  • Bigger drain port with 3/4" (1.905 cm approx) ball valve for quick drainage.
  • Disk filters are made with special Helix system which gives better performance and results.
