Brand: Imported

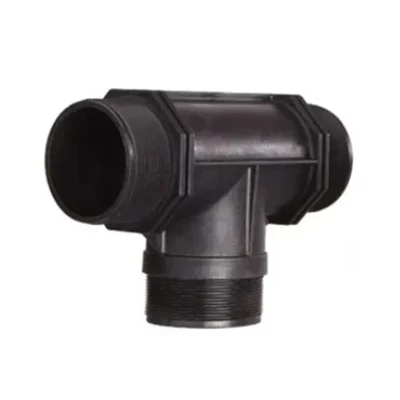

3 Inch Threaded Bypass Tee with 3 Nos. Slip on Flange
SKU: JS-HA-2021260
Price : ₹1334 (Including GST)
Qty:
Easy Returns
Quality Assurance
Trusted Delivery
After Sales Assistance
Short Description
Threaded Bypass Tee with 3 Nos. Slip on Flange
3 Inch
Description
3 Inch Threaded Bypass Tee with 3 Nos. Slip on Flange
Description :
- Slip on Flange is essentially a ring that is placed over the pipe end, with the flange face extending from the end of the pipe by enough distance to apply a weld bead on the inside diameter.
- Threaded Tees is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line.
- It is a short piece of pipe with a lateral outlet.
Features :
- Slip On : Good Resistance to strong acids except highly active oxidizers, such as nitric acid. It also has excellent resistance to weak and strong alkalies and to most organic solvents.
- It also has excellent resistance to weak and strong alkalies and to most organic solvents.
- Tees with Smooth Flow and minimal pressure drop.
- Sturdy and strong with a longer life
- UV Stabilized
Specifications :
- Model No. : HT-186
- Product Type : By Pass Tee with Slip On Flange
- Brand : Imported
- Size : 3 Inch or 80 mm
- Material : Reinforced Polypropylene
- Color : Black
- Tee Dimensions :
- (d) : 77 mm
- (L1) : 36.4 mm
- (L) : 234.8 mm
- (H) : 177.8 mm
- Max. Operating Pressure: 10 Bar/ 145 Psi
Applications :
- Pipe Tee is used to connect pipelines with a pipe at a right angle with the line.
- Pipe Tees are widely used in various commercial and industrial applications.
- Chemical processing
- Waste treatment
- Utilities/power generation
- Gas compression and distribution industries
