Impel 0.5Hp Three Phase 1440 RPM Foot Mounted Aluminium Body AC Induction Motor - 2 Years Warranty

Brand: Impel

Impel 0.5Hp Three Phase 1440 RPM Foot Mounted Aluminium Body AC Induction Motor - 2 Years Warranty

Name: Impel 0.5Hp Three Phase 1440 RPM Foot Mounted Aluminium Body AC Induction Motor - 2 Years Warranty
Brand: Impel
SKU: TB-IM-36624
Price: 5499 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TB-IM-36624

MRP : ₹7800 ₹5499

30% OFF!

Get Extra ₹82 OFF on Prepaid Orders

Delivery By: Dec 9 - Dec 11

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹5499 (Including GST)

MRP : ₹7800

30% OFF!

Get Extra ₹82 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

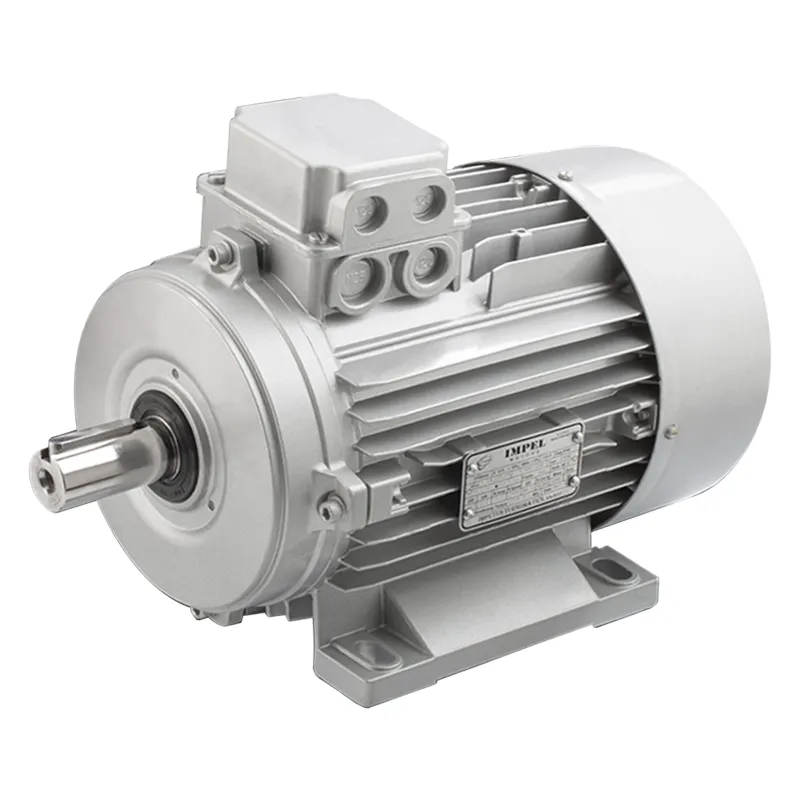

Impel 0.5 Hp Three Phase AC Induction Motor
1440 RPM, Foot Mounted
2 Years Warranty

Country of origin: India

Brand: Impel
Power : 0.5 hp
Weight (Approx.) : 7 kg
Winding Material : Copper

Wattage : 0.37 kW
Electricity Connection : Three Phase
Rated Voltage : 415 Volt, 50 Hz
Speed : 1440 RPM
Frame : 71
Shaft Diameter : 14 mm
Winding Material : Copper
Body Material : Aluminium
Enclosure : TEFC (Total Enclose Fan Cooled)
Cooling Method : IC411 (Shaft Mounted Fan)
Ambient Temperature : 50°C

The Impel 0.5Hp three phase AC induction motor is a type of electric motor designed for various applications. The motor's key features include its aluminium body construction, which provides a durable and corrosion-resistant housing for the internal components. The foot-mounted design allows for easy installation and integration into various industrial systems.

Features

High Efficiency and Long Life Product
Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
High Torque Level.
High Power Factor.
Low Temperature Rise.
Minimum copper losses due to use of electrolytic grade of copper
Minimum friction losses with SKF/FAG
Easy maintenance
Minimum Pay Back Period
