Brand: ALGO

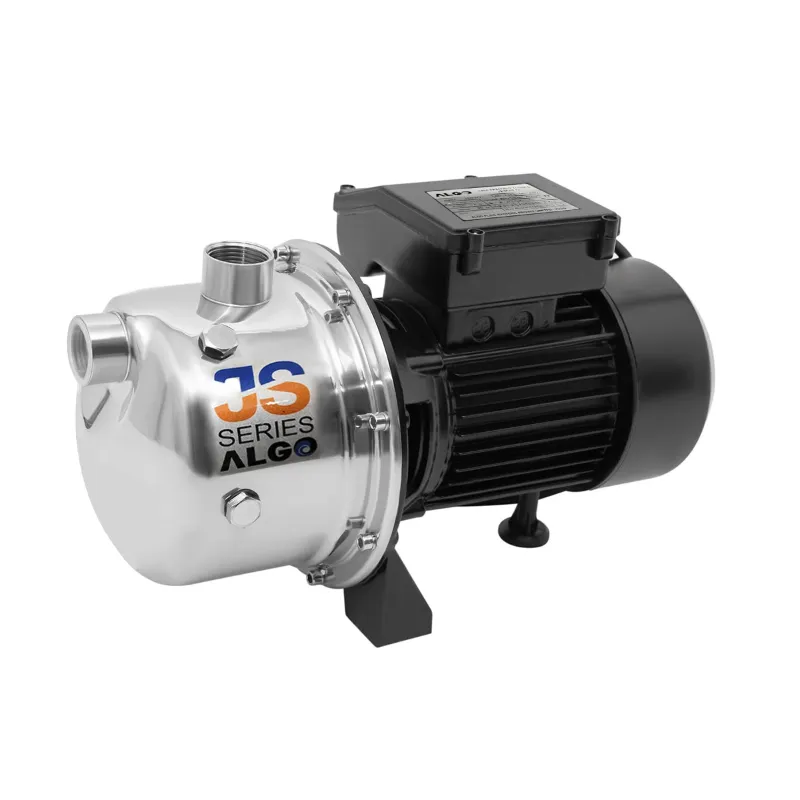

Algo 1 Hp Three Phase Self Priming SS Jet Pump 35m Head, 60 LPM Discharge, 25x25mm - 1 Year Warranty (JS-3-07T)
SKU: TI-A1-18817
12 people have bought this recently
Estimated Delivery By: Oct 30 - Nov 1
MRP : ₹10800 ₹8140
25% OFF!
12 people have bought this recently Estimated Delivery By: Oct 30 - Nov 1 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹8140 (Including GST)
MRP : ₹10800
25% OFF!
Get Extra ₹122 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Algo 1 Hp Three Phase Self Priming SS Jet Pump (JS-3-07T)
35M Max. Head, 60 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specifications
- Brand: ALGO
- Model No : JS-3-07S
- Product Type : Jet Pump
- Brand : Algo
- Wattage : 0.75 kW
- Rated Voltage : 380-415 Volt, 50 Hz
- Electricity Connection : Three Phase
- Head Range : 15 to 35 Meter (49.2 to 114.8 Feet)
- Discharge Range : 60 to 16 LPM (3600 to 960 LPH)
- Pump Size (Suction x Delivery) : 25 x 25 mm (1" x 1")
- Duty : S1 (Continuous)
- Protection : IP 54
- Insulation Class : B
- Speed : 2900 RPM
- Max. Liquid Temperature : 50°C
- Max. Ambient Temperature : 40°C
- Suction Lift : Upto 7m
- Mounting Type : Floor Standing
Material Of Construction :
- Pump Casing : SS 304
- Motor Body : Aluminium
- Impeller : SS 304
- Shaft : SS 304
- Mechanical Seal : Carbon Ceramic
- Bearing : Double Shielded Ball Bearing
Description
A shallow well jet pump is a type of jet pump specifically designed to draw water from shallow wells and to give best hydraulic efficiency and suction lift characteristics. These pumps are mounted above ground and are non-submersible, making them suitable for applications where the water source is relatively close to the surface. Before starting a shallow well jet pump, it must be primed to ensure there is no air in the pump housing. Priming involves filling the priming vent with water until it reaches the top of the vent. Once primed, turn on the power to start the pump. The impeller creates suction that pulls water up through the suction pipe and into the pump, where it is pressurized and then delivered for various applications.
Features
:- Energy Efficient Motor With Tharmal Overload Protection
- Large Delivery Lift
- High Strength 304 SS Head For Corrosion Resistance & Abrasion
- Easy Installation
- Lower Noise
Applications
:- Residential
- Irrigation
- Small Farms
- Pressure Boosting Units
- Industrial Water Supply
- Food Processing Industries
- Washing Systems
WARRANTY :
- 1 Year Warranty as per Algo Policy.
Shipping Weight & Dimensions
:
Verified Package Dimensions (L X W X H)
:
40 cm X 24 cm X 28 cm
Package Weight
:
11.20 Kg
