Brand: Generic (Imported)

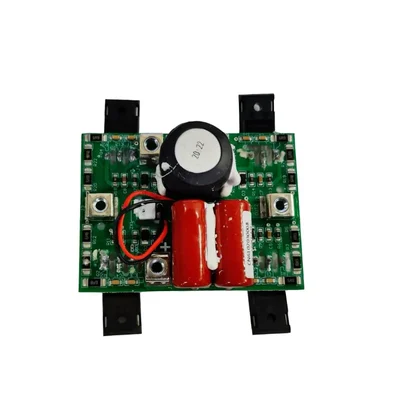

NG Weld 3 Phase Inverter Control Board for 300 amp MIG Welding Machine (MIG 300L)
SKU: TI-TM-55309
Delivery By: Jan 18 - Jan 20
MRP : ₹4500 ₹4109
9% OFF!
Delivery By: Jan 18 - Jan 20 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹4109 (Including GST)
MRP : ₹4500
9% OFF!
Get Extra ₹62 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
3 Phase Inverter Control Board
Suitable for : MIG Welding Machine
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 100 gm
- Model Number : MIG 300L
- Compatibility : 300 A MIG 300L
- Phase Support : Three-Phase (3Ph) Systems
- Control Logic : Precision PWM Current & Voltage Regulation
- PCB Grade : Industrial FR4 with High-Thermal Resistance
- Connectivity : Multi-Pin Easy-Plug Connectors
- Voltage : 380-415V
Description
The MIG 300L IGBT Card is a high-performance power control PCB designed for MIG 300L welding machines. Built with advanced IGBT technology, this card ensures stable arc performance, efficient power conversion, and reliable operation during continuous welding. It plays a critical role in controlling current flow, improving welding quality, and protecting the machine from electrical faults. Ideal for industrial and heavy-duty MIG welding applications.
Features
:- Advanced IGBT Technology – Ensures fast switching, low power loss, and high efficiency
- Stable Arc Control – Provides smooth and consistent welding output
- High Power Handling – Suitable for MIG 300L high-current welding machines
- Durable PCB Design – High-quality components for long service life
- Excellent Heat Resistance – Designed for continuous and heavy-duty operation
- Reliable Performance – Reduces spatter and improves weld bead quality
- Easy Replacement – Direct fit for compatible MIG 300L models
Applications
:- Industrial MIG Welders : Main control unit for wire feed and voltage management.
- Heavy-Duty MMA Machines : Reliable current regulation for stick welding.
- Workshop Upgrades : Replacing old or faulty 400X series control boards.
- Automation Systems : Suitable for integrated 3-phase industrial welding setups.
Usage
:Usage Guidance :
- Power Down : Completely disconnect the 3-phase power supply before opening the machine.
- Mapping : Take a photo of existing wire connections on the old card before removal.
- Installation : Align the card on the mounting standoffs and secure it firmly.
- Wiring : Reconnect all multi-pin plugs ensuring they are fully seated and locked.
- Calibration : Perform a low-current test run to verify arc stability before full-load operation.
Maintenance Guidance :
- Cleanliness : Use dry air to remove metallic dust buildup, which can cause short circuits on the PCB.
- Terminal Check : Inspect connector pins periodically for signs of carbon soot or loose seating.
- Thermal Management : Ensure the machine’s internal cooling fans are functioning to prevent card overheating.
