Brand: Jadever

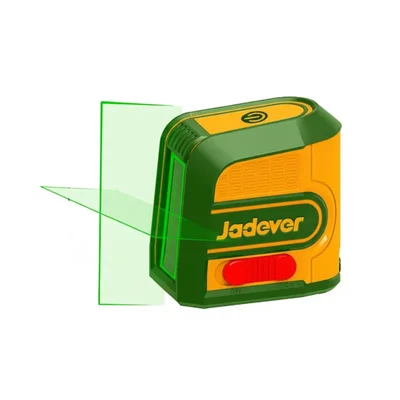

Jadever Self Leveling Green Line Laser 30 m Cross Line Level with Magnetic Bracket and Case (JDLE2M03)
SKU: TI-JS-53563
Delivery By: Feb 25 - Feb 27
MRP : ₹3650 ₹3489
4% OFF!
Delivery By: Feb 25 - Feb 27 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹3489 (Including GST)
MRP : ₹3650
4% OFF!
Get Extra ₹52 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Jadever Self Leveling Green Line Laser
30m Cross Line Level with Magnetic Bracket and Case
Country of origin: Taiwan, Province of China
Specifications
- Brand: Jadever
- Weight (Approx.) : 250 gm
- Net Quantity : 1 pc
- Model : JDLE2M03
- Working Range : 0 to 30 meters
- Levelling Accuracy : +/- 2mm at 5m
- Line Accuracy : +/- 2mm at 5m
- Laser Type : 520nm, Class II, less than 1mW
- Levelling Time : 3 seconds or less
- Self-Levelling Angle : 4 degrees or less
- Power Source : 2 x 1.5V AA (LR6) Batteries
- Operating Temperature : 0 to +40 degrees Celsius
- Storage Temperature : -10 to +50 degrees Celsius
- Included Accessories : Magnetic Bracket and Canvas Bag
Description
The Jadever JDLE2M03 is a professional-grade green beam self-leveling line laser designed for ultimate visibility and precision. Offering a 30m working range, it projects accurate horizontal and vertical cross-lines with a rapid leveling time of under 3 seconds. Its durable design and magnetic mounting make it the perfect tool for tiling, cabinetry, and structural alignment tasks.
Features
:- High-Visibility Green Beam : Utilizes a 520nm Class II laser for superior visibility compared to standard red beams.
- Rapid Self-Leveling : Automatically levels within a 4 degree angle in less than 3 seconds.
- Cross Lock Function : Features a laser lock mode for projecting lines at various manual angles.
- Versatile Projection : Provides independent or combined horizontal and vertical line functions for complex layouts.
- Magnetic Mounting : Includes a heavy-duty magnetic bracket for easy attachment to metal studs and surfaces.
Applications
:- Interior Fit-outs : Perfect for aligning suspended ceilings and partition walls.
- Tiling and Flooring : Ensures perfectly straight lines for floor and wall tile installation.
- Carpentry : Ideal for installing kitchen cabinets, shelving, and trim work.
- Electrical and Plumbing : Useful for aligning socket outlets, switches, and pipe runs.
Usage
:User Instructions :
- Setup : Insert the 2 AA batteries into the battery compartment.
- Mounting : Attach the device to the included magnetic bracket or place it on a stable, flat surface.
- Power On : Slide the switch to the ON position to activate the self-leveling mode.
- Align : Wait for the beam to stabilize (less than 3 seconds) to get a true level line.
- Manual Mode : Use the cross lock function if you need to project tilted lines for stairs or decorative designs.
Maintenance :
- Cleaning : Wipe the laser output window with a soft, dry cloth to maintain beam clarity.
- Protection : Always store the unit in the provided canvas bag to protect the internal pendulum from shocks.
- Battery Care : Remove the AA batteries if the device will not be used for more than 30 days to prevent leakage.
- Calibration Check : Periodically verify the accuracy by projecting a line against a known level reference point.
