Brand: Surya

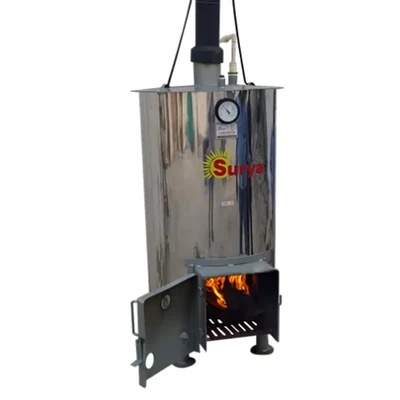

Surya Mirror Finish Vertical Tubular Biomass Wood Fired Hot Water Boiler 300L
SKU: TI-SM-68241
Estimated Delivery By: Apr 15 - Apr 17
MRP : ₹96199 ₹73999
23% OFF!
Estimated Delivery By: Apr 15 - Apr 17 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹73999 (Including GST)
MRP : ₹96199
23% OFF!
Get Extra ₹1,110 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Surya 300L is a professional-grade, wood-fired hot water boiler featuring a 10-minute rapid heat-up time and 8-10 hours of heat retention. Built with JSW/Jindal steel, it offers a 15-year lifespan and requires zero electricity.
Country of origin: India
Specifications
- Brand: Surya
- Model: 300L
- Capacity: 300 Liters
- Automation Grade: Semi-Automatic
- Heater Type: Vertical Tubular Heater
- Surface Finish: Mirror Polish
- Color: Silver Ash
- Inner Tank Thickness: 8 mm
- Outer Tank Thickness: 5 mm
- Operating Temperature: 100°C
- Working Pressure: 10 Kgs/cm²
- Fuel Consumption: 7kg (at maximum load)
- Hot Water Output: 35 Liters per minute
- Heating Speed: 60°C in 4 Minutes
- Mixing Ratio: 1L Hot Water (60°C) to 2L Cold Water
- Inlet Pipe Size: 2 Inch
- Outlet Pipe Size: 1 1/4 Inch
- Drainage Pipe Size: 1 Inch
- Exhaust Pipe: 10ft Height x 6-inch Diameter
- Firing Area Volume: 1000 cubic inches
- Total Weight: 225 kg
- Height: 5 Feet
- Diameter: 30 Inch
- Space Required: 2.5 x 2.5 Feet
- Mounting: Foot Mounting
Description
An efficient and long-lasting non-electric water heating option is the Surya 300L Wood Fired Hot Water Boiler. This contemporary storage-type heater uses cutting-edge vertical tube technology to produce blazing hot water in as little as 4 to 10 minutes. The boiler has a 15-year lifespan thanks to its heavy-duty 8mm inner tank and 5mm outer tank, which were constructed using premium raw materials from JSW and Jindal. Because it works regardless of the weather and is extremely resistant to hard water, it is a perfect, affordable substitute for solar or electric heaters. This boiler provides a dependable and environmentally responsible method of handling large-capacity hot water requirements, whether for residential or commercial use.
Features
:- Ultra-Quick Heating: Reaches maximum capacity in 10 minutes and 60°C in just 4 minutes.
- Extended Heat Retention: For eight to ten hours, the water's temperature is maintained via superior insulation.
- No Electricity Needed: It runs completely on solid fuels, such as wood, charcoal, and agricultural waste, thus there are no ongoing electricity expenses.
- High-Pressure Resistance: It is compatible with multi-floor plumbing because it is made to withstand a working pressure of 10 kg/cm².
- Hard Water Optimized: This boiler does well in hard water settings without suffering major scale damage, in contrast to solar systems.
- Sturdy Construction: Made of heavy gauge steel (8 mm inner/5 mm exterior) with an interior coating that prevents rust.
- Therapeutic Benefits: By providing a steady stream of high-temperature water, it promotes muscle relaxation, stress reduction, and better sleep.
Applications
:- Domestic: Single-family residences and multi-story bungalows.
- Resorts, hotels, guest houses, and lodges are examples of hospitality.
- Clinics and hospitals provide healthcare.
- Education: Hostels in schools and colleges.
- Poultry and dairy farms are examples of the agro-industry.
Usage
:- Fuel Compatibility: For optimal results, use dry wood, charcoal, coconut shells, kernels, or agricultural waste.
- External Maintenance: Do not store soap, shampoo, or detergents on top of the boiler; instead, keep the boiler's exterior dry.
- Plumbing Safety: Make sure there are no leaks in any pipe connections. Installing a Non-Return Valve (NRV) is not recommended.
- Ash Removal: To keep airflow for effective combustion, clean the gray ash drawer on a regular basis.
- Exhaust Cleaning: To avoid dust buildup and preserve heating speed, clean the 10-foot exhaust pipe on a regular basis.
- Tank hygiene: Flush the tank right away to get rid of sediment or bacterial growth if the water starts to smell or appear rusty.
- Material Warning: Avoid connecting plastic pipes directly to the boiler.
