Brand: Solar Universe India

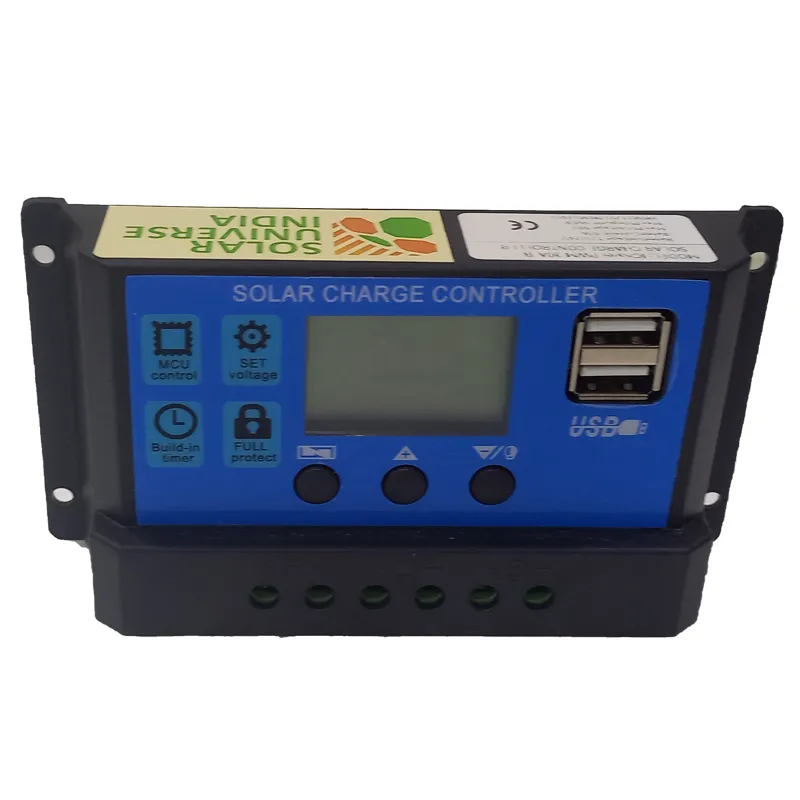

Solar Universe India 30Amp PWM Dual Voltage Mode Solar Charge Controller with LCD Display and 5V USB Output
SKU: TI-SU-11731
7 people have bought this recently
Delivery By: Dec 20 - Dec 22
MRP : ₹999
7 people have bought this recently Delivery By: Dec 20 - Dec 22 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹999 (Including GST)
Get Extra ₹15 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
30Amp PWM Dual Voltage Mode Solar Charge Controller with LCD Display and USB Output
Can be used on 12V or 24V
5 Volts USB output
Country of origin: India
Specifications
- Brand: Solar Universe India
- Weight (Approx.) : 0.15 kg
- Voltage : 12 Volts and 24 Volts
- Operating Range : 20 - 50 Volts
- Max Solar Input : 50 Volts - 500 Watt
- Max Battery Bank : 12 Volts - 200 Ah or 24 Volts - 200 Ah
- Operating Temperature : Up to 55 Degrees
- Self Consumption : <10 ma
- Efficiency : >90%
- Display Type : LCD Display
- Mounting Type : Wall Mountable
Note : Solar Panels & Battery Not Included
Description
Microcontroller PWM technology based Solar Charge Controller & Regulator of 12V & 24V - 30amp (dual voltage option) with inbuilt protections, battery level status and USB output of 5V that may be used for mobile & small gadget recharging directly.
It can be connected to a maximum of 360W solar panel with Open Circuit Voltage (VOC) of up to 24V and a battery bank of 12V or 24V.
The controller has a smart tracking algorithm that increases the amount of energy harvested from the PV and also offers load control to minimize battery over discharge.
For Connections Connect Battery to Charge Controllers (+-) terminals & later connect solar panel to charge controller (+-) terminals and lastly connect your load to (+-) terminals of the charge controller
It can be connected to a maximum of 360W solar panel with Open Circuit Voltage (VOC) of up to 24V and a battery bank of 12V or 24V.
The controller has a smart tracking algorithm that increases the amount of energy harvested from the PV and also offers load control to minimize battery over discharge.
For Connections Connect Battery to Charge Controllers (+-) terminals & later connect solar panel to charge controller (+-) terminals and lastly connect your load to (+-) terminals of the charge controller
Features
:- LCD Display with Digital Controller
- Auto Sensing Dual Mode (Can be used on 12V or 24V)
- PWM & Microcontroller based on 5 Stage Charging ie. Trickle, Soft, Boost, Float & Equalize
- Multiple Protections like Short Circuit, Open Circuit, Battery Reverse, PV Reverse, PV Input High / Low & Overload Protection
- Portable, Sturdy & Robust makes it a plug & play, ease to use & operate solar system
