Brand: Galaxy Pro

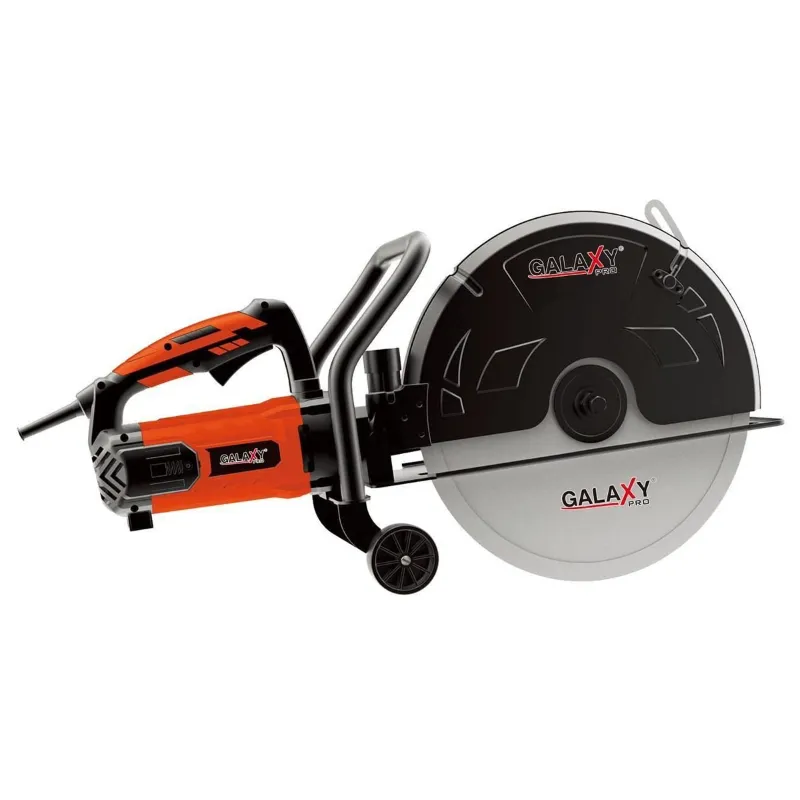

Galaxy Pro 3200 W 355 mm Concrete Cutter Machine (GLX-3-405)
SKU: TI-GP-36127
2661 people have viewed this recently
Delivery By: Dec 9 - Dec 11
MRP : ₹22500 ₹16599
26% OFF!
2661 people have viewed this recently Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹16599 (Including GST)
MRP : ₹22500
26% OFF!
Get Extra ₹249 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Galaxy Pro 3200 W 355 mm Concrete Cutter Machine
4700 RPM
Country of origin: China
Specifications
- Brand: Galaxy Pro
- Power : 3200 w
- Weight (Approx.) : 20 kg
- Speed : 4700 rpm
- Cutting Size : 355 mm
- Net Quantity : 1 pc
- Product Type : 16" Slab Cutter Machine
- Rated Voltage : 220-240 V
- Rated Power : 3200 W
- No-Load Speed : 4700 RPM
- Max Depth : 355 mm
- Max Blade Diameter : 405 mm
Description
The Galaxy Pro 3200 W 355 mm Concrete Cutter Machine (GLX-3-405) is a powerful tool designed for efficient stone cutting. It operates at 4700 rpm, delivering precise and swift cuts. With a 3200W power input and 355 mm blade capacity, it handles demanding projects effortlessly.
Features
:- High-Performance Motor : Robust 3200W motor provides consistent power for cutting hard materials like concrete and stone.
- Integrated Guide Wheels : Equipped with bottom wheels to ensure stability and perfectly straight cuts on flat surfaces.
- Adjustable Capacity : Comes optimized for 355mm (14") blades but supports a maximum blade diameter of 405mm (16").
- Ergonomic Design : Features a sturdy rear handle and top grip for maximum control during floor operations.
- Durable Guard : Large metal blade guard ensures operator safety against debris and sparks.
Applications
:- Road Construction : Cutting asphalt and concrete for road repairs or utility installation.
- Flooring : Cutting expansion joints in fresh concrete floors.
- Demolition : Sectioning concrete slabs for removal.
- Masonry : Heavy-duty cutting of brick, stone, and reinforced materials.
Usage
:User Instructions :
- Safety First : Wear a dust mask, safety goggles, heavy gloves, and ear protection.
- Install Blade : Ensure the machine is unplugged. Remove the outer flange, mount the diamond blade (check rotation direction arrows), and tighten the flange securely.
- Depth Setup : Adjust the cutting depth using the depth control lever/knob to suit your specific task.
- Operation : Connect to a power source. Grip the handles firmly. Press the trigger switch to start the motor.
- Cutting : Wait for the blade to reach full speed. Gently lower the blade into the material. Push the machine forward using the rear wheels for a smooth, straight cut. Do not force it; let the RPM do the work.
Maintenance :
- Important : Always unplug the machine before performing maintenance.
- Blade Inspection : Check the diamond blade regularly for cracks, missing segments, or warping. Replace immediately if dama
- Carbon Brushes : This is a high-power electric tool; check carbon brushes periodically and replace them if worn to protect the motor.
- Air Vents : Clean the motor air vents with compressed air after every use to prevent concrete dust build-up and overheating.
- Wheel Care : Ensure the guide wheels roll smoothly and are free of dried concrete slurry.
