Brand: Generic (Imported)

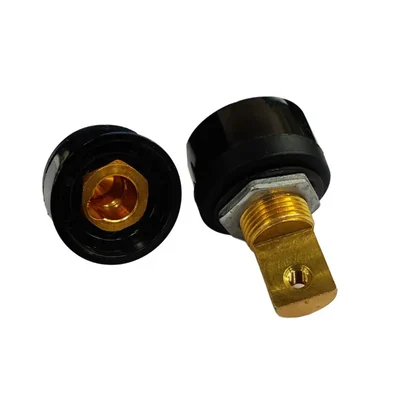

N G Weld 35-50 mm D Type Panel Socket for Welding Machine
SKU: TI-NG-62334
Delivery By: Jan 21 - Jan 23
MRP : ₹400 ₹359
10% OFF!
Delivery By: Jan 21 - Jan 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹359 (Including GST)
MRP : ₹400
10% OFF!
Get Extra ₹5 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
NG Weld 35-50 mm D Type Panel Socket Set
Brass Material Socket
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 250 gm
- Size : 35-50 mm
- Socket Type : D
- Material : Brass
Description
The Panel Socket (D Type) is a heavy-duty welding machine connector designed for secure and efficient current transfer. Made from high-conductivity brass with a robust insulated body, this panel socket ensures stable electrical contact and long service life. It is suitable for MMA/ARC welding machines and compatible with standard welding cable connectors. Available in 35/50 sizes to meet different current requirements.
Features
:- D Type Panel Socket – Standard design for easy compatibility
- High Conductivity Brass Contact – Ensures low resistance and minimal power loss
- Strong Insulated Body – Heat-resistant and shock-proof for safe operation
- Secure Panel Mounting – Firm fitting with threaded design and nut
- Available Sizes - 35/50 options
- Heavy-Duty Construction – Suitable for industrial and workshop use
- Long Life & Reliable Performance – Ideal for continuous welding operations
Applications
:Industrial Welding & Fabrication
- MMA/ARC Inverter Machines : Used as the primary output terminal for stick welding, allowing for quick connection of electrode holders and earth clamps.
- TIG & MIG Power Sources : Acts as a reliable interface for ground cables or power leads in gas-shielded welding processes.
- Wire Feeders : Provides a secure power link between the main welding power source and external wire feeding units.
Equipment Manufacturing & Maintenance
- Custom Welding Benches: Integrated into shop-built welding stations or "grounding plates" to provide a centralized point for cable management.
- Machine Refurbishment: Used as a standard replacement part for worn-out or damaged sockets on older engine-driven welders or transformers.
- Mobile Welding Carts: Installed on portable carts to allow operators to quickly disconnect and store long cables for transport.
Usage
:How to use
- Twist-Lock Engagement: When connecting the male cable plug, insert it fully and twist clockwise until it locks firmly. A loose connection causes "arcing," which can melt the socket and damage the machine's internal electronics.
- Match Cable Size: Ensure your welding cable matches the 35/50 .Using a cable that is too thin can lead to overheating, while one that is too thick may not fit the mating plug correctly.
- Avoid "Hot" Disconnection: Never unplug the cables while the machine is actively welding or under load. This prevents hazardous sparks and preserves the life of the brass contacts.
