Brand: TURTLE

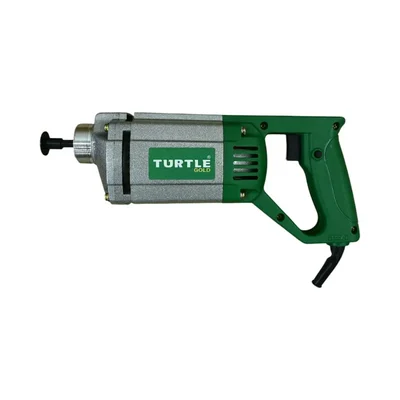

Turtle Gold 35 mm 1450 W 5000 RPM Electric Concrete Vibrator (ST-953S)
SKU: TI-T3-45149
Delivery By: Dec 30 - Jan 1
MRP : ₹3400 ₹2790
18% OFF!
Delivery By: Dec 30 - Jan 1 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹2790 (Including GST)
MRP : ₹3400
18% OFF!
Get Extra ₹42 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Turtle 35 mm 1450 W Electric Concrete Vibrator
5000 RPM No Load Speed
Country of origin: China
Specifications
- Brand: TURTLE
- Weight (Approx.) : 3 kg
- Net Quantity : 1 pc
- Rod Diameter : 35 mm
- Rated Voltage : 220 V
- Rated Frequency : 50 Hz
- Rated Power : 1450 W
- Rated No-load Speed : 5000 RPM
Description
The Turtle Gold ST-953S 35 mm Electric Concrete Vibrator offers 1450W power and 5000 RPM, ensuring optimal concrete compaction for smooth, high-quality finishes. Designed for efficiency, it removes air bubbles and improves workability in various concrete applications. Its compact design and robust construction make it ideal for professional use in columns, slabs, and beams, providing reliable performance every time.
Features
:- High Power 200° Copper Motor
- Alluminium Motor Housing
- Harden Shaft and Gear
- Suitable up to 3m x 35 mm Shaft
Applications
:- Commercial Slabs : Efficiently consolidating concrete in larger floor and roof slabs.
- Thick Columns and Shear Walls : Ensuring dense, uniform compaction in high-volume vertical structures.
- Foundations and Footings : Removing trapped air for a strong and durable base.
- Bridge Decks and Civil Infrastructure : Suitable for professional, continuous concrete placement.
Usage
:User Instructions :
- Assembly : Securely attach the flexible shaft and the 35mm poker head to the motor unit. Ensure all connections are tight.
- Activation : Turn the unit ON and immerse the running vibrator head vertically into the freshly poured concrete.
- Vibration Technique : Allow the vibrator to penetrate quickly and hold it in place until air bubbles cease to rise (typically 5 to 10 seconds).
- Extraction : Withdraw the head slowly to allow the concrete to fill the void. Overlap the areas in a systematic grid pattern. Never touch the rebar with the running needle unnecessarily.
Maintenance :
- Immediate Cleaning : Remove all wet and hardened concrete from the needle and shaft after every use to prevent mechanical damage.
- Flexible Shaft Care : Inspect the shaft for kinks or damage. Check and periodically grease the coupling connections as per manufacturer guidelines.
- Motor Ventilation : Keep the motor casing, especially the air vents, clean and free of concrete dust and debris to prevent overheating.
- Brush and Cable Check : Monitor the condition of the motor's carbon brushes and inspect the power cable for any cuts or abrasions regularly.
- Dry Storage : Store the unit in a clean, dry location, avoiding dampness that can affect the electrical components.
