Brand: TURTLE

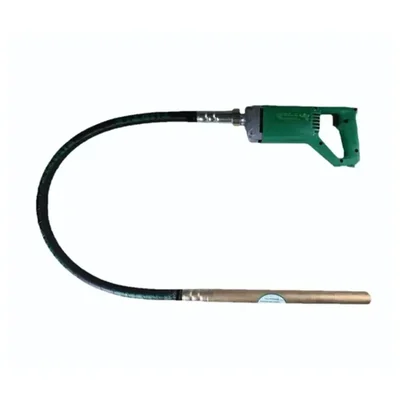

Turtle Gold 35 mm 800 W Electric Concrete Vibrator (ST-951S) with 1 m Vibrating Needle
SKU: TI-TG-52844
Delivery By: Dec 19 - Dec 21
MRP : ₹3200 ₹2988
7% OFF!
Delivery By: Dec 19 - Dec 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹2988 (Including GST)
MRP : ₹3200
7% OFF!
Get Extra ₹45 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Turtle Gold 35 mm 800 W Electric Concrete Vibrator (ST-951S)
1 m Vibrating Needle
Country of origin: China
Specifications
- Brand: TURTLE
- Weight (Approx.) : 5 kg
- Net Quantity : 1 pc
- Rod Diameter : 35 mm
- Model : ST-951
- Rated Input Power : 800W
- No-Load Speed : 4800 RPM
- Frequency : 50 Hz
- Voltage : 220 V
- Needle Size : 1 m x 35 mm
Description
Turtle Gold 35 mm 800W Electric Concrete Vibrator (ST-951S) is designed for expert concrete consolidation. With its powerful 800W motor and 1 m vibrating needle, this tool efficiently removes air pockets and ensures uniform concrete density. Perfect for construction, infrastructure, and building projects, its compact design enhances maneuverability.
Features
:- Good Quality Plastic Housing
- Compact design for easy maneuverability
- Effective in removing air pockets and excess water from concrete
- Ensures uniform consolidation and increased strength
- Suitable for various concrete applications (foundations, slabs, columns, etc.)
- Self-Locking Switch for Long Hours Work
Applications
:- Residential Construction : Compacting concrete in footings, sidewalks, and residential slabs.
- Structural Elements : Used for small to medium columns, beams, and lintels.
- Precast Components : Consolidating concrete mix in molds for precast elements.
- Foundation Work : Ensuring density in shallow and medium-depth foundations.
Usage
:User Instructions :
- Preparation : Ensure the needle is securely attached to the motor unit and the power source is correct (220V).
- Insertion : Switch the vibrator ON and gently insert the vibrating needle vertically into the freshly poured concrete.
- Vibration : Allow the needle to penetrate quickly to the full depth of the concrete layer or the previously vibrated layer.
- Air Removal : Hold the needle in place until air bubbles cease to rise to the surface (usually 5 to 15 seconds).
- Withdrawal : Slowly withdraw the needle, ensuring the hole closes naturally. Reinsert at slightly overlapping intervals (about 1.5 times the radius of influence) to cover the entire area.
Maintenance :
- Cleaning : After each use, thoroughly clean the vibrating needle and the motor housing to remove any adhering concrete residue. Do not use water directly on the motor.
- Shaft Inspection : Regularly inspect the flexible shaft for kinks, damage, or wear to prevent internal friction and breakage.
- Lubrication : Consult the manual to determine if the flexible shaft requires periodic greasing (typically once every few months of regular use).
- Storage : Store the vibrator in a clean, dry location, preferably with the shaft coiled loosely or hanging straight to avoid permanent bends.
- Carbon Brushes : Monitor the motor's carbon brushes (if applicable) and replace them when worn to maintain peak 800W performance.
