Geekay 36V 250W 38NM Pro Standard E-Cycle Motor Kit w/ 13Ah Battery Charger

Brand: GEEKAY

Geekay 36V 250W 38NM Pro Standard E-Cycle Motor Kit w/ 13Ah Battery Charger

Name: Geekay 36V 250W 38NM Pro Standard E-Cycle Motor Kit w/ 13Ah Battery Charger
Brand: GEEKAY
SKU: SI-PS-65626
Price: 25500 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: SI-PS-65626

MRP : ₹31000 ₹25500

18% OFF!

Get Extra ₹383 OFF on Prepaid Orders

Estimated Delivery By: Mar 13 - Mar 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹25500 (Including GST)

MRP : ₹31000

18% OFF!

Get Extra ₹383 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Geekay 36V 250W Pro kit + 13Ah battery/3A charger (38NM, 25kmh, 50-60km range, PAS).

Country of origin: India

Brand: GEEKAY

Voltage: 36V
Power: 250W
Torque: 38NM
Battery: 13Ah Li-ion
Charger: 3A fast charge
Top Speed: 25 km/hr
Range: 50-60 km
Pulling Capacity: 110 kg
Warranty: 2 years motor & battery

The whole Pro Standard 36V 250W BLDC hub motor set comes with a quick 3A charger and a large 13Ah Li-ion battery. With its 38NM torque, waterproof design, 3-mode PAS sensor, cruise control throttle, and top speed of 25 km/h, this dependable e-cycle conversion can handle loads up to 110 kg with a range of 50–60 km.

Features

Steep inclines are conquered with a waterproof BLDC hub motor with a 38NM high torque.
Pedaling efficiency is maximized by an 8/12 magnet PAS sensor with three speed options.
Key ignition, battery display, and cruise mode are all included in full throttle.
For safety, auto-cut brake levers guarantee an immediate motor shutdown.
Robust 6-tube 17A smart controller with enhanced watertight connections.

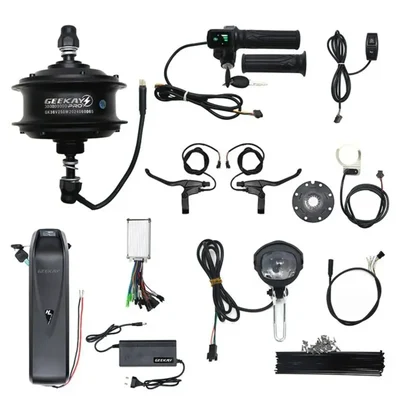

Accessories

36V 250W waterproof hub motor + 36 spokes (14GG)
36V 6T 17A smart controller
13Ah Li-ion battery with BMS
36V 3A fast charger
LED halogen headlight with horn
Auto-cut brake lever set
PAS sensor (8/12 magnet, 3 modes)
Full throttle with cruise/key/display
Light/horn switch panel

Applications

Commuting via long-distance electric bicycle.
E-cycle modifications for delivery and cargo.
Fitness bikes with cutting-edge PAS support.
Conveyance in cities for cargo weighing up to 110 kg.

Usage

Use the 36 spokes or nipples that are included to lace the motor into the back wheel.
As shown in the diagram, connect the throttle, brakes, PAS, and waterproof controller.
Secure the 13Ah battery inside the frame and use a 3A charger to fully charge it in 4–5 hours.
For terrain, choose PAS modes 1-3; for flat terrain, activate cruise.
When not in use, keep the battery between 50 and 60 percent. Test all functions before driving.
