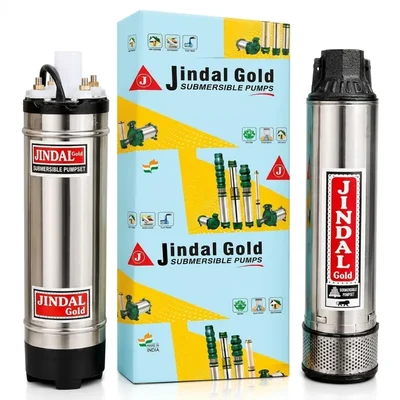

Jindal 3 HP 15 Stage V4 Single Phase Water Cooled Submersible Pump, 120ft Head, 12000 LPH

Brand: Generic ( Made in India )

Jindal 3 HP 15 Stage V4 Single Phase Water Cooled Submersible Pump, 120ft Head, 12000 LPH

Name: Jindal 3 HP 15 Stage V4 Single Phase Water Cooled Submersible Pump, 120ft Head, 12000 LPH
Brand: Generic ( Made in India )
SKU: TI-J3-80122
Price: 15999 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J3-80122

MRP : ₹21600 ₹15999

26% OFF!

Get Extra ₹240 OFF on Prepaid Orders

Estimated Delivery By: Aug 14 - Aug 16

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹15999 (Including GST)

MRP : ₹21600

26% OFF!

Get Extra ₹240 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 3 HP 15 stage V4 Submersible Pump

120ft max Head, 200 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 3 hp
Weight (Approx.) : 30.5 kg
Flow Rate : 200 lpm
Head : 37 meter

Power : 3 Hp
Weight (Approx.) : 30.5 Kg
Flow Rate : 200 lpm
Head : 37 meter
Product Name : Borewell Submersible Pump
Wattage : 2.2 kW
Supply Voltage : 200 to 220 Volt, 50 Hertz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 15 Stage
Pump Type : V4
Suitable Bore Size : 4 inch
Max. Head Range : 120 Feet (37 Meter)
Max. Flow/Discharge Rate : 200 LPM (12000 LPH)
Pipe Size (Suction x Delivery) : 50 x 50 mm (2 x 2 inch)
Cooling Type : Water Cooled

Material Of Construction :

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Pump Shaft : SS-410

This borewell submersible pump is designed for efficiently extracting water from deep underground sources. It is a compact yet powerful unit suitable for residential and agricultural applications requiring moderate water flow.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High Electrical and Mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty :

1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Maintenance

Regularly inspect electrical cables and connections to ensure they are secure and free from damage.
Avoid dry running the pump, as this can severely damage the internal components and is not covered under warranty.
Check for any unusual noise or excessive vibration during operation, which could indicate bearing or clearance issues.
Ensure that the cooling water circulation is adequate to prevent overheating.
