Brand: GNAT

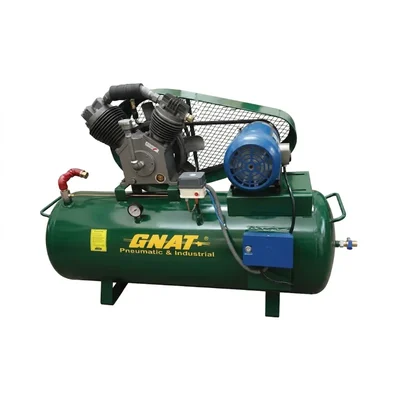

GNAT 3 HP 175L Belt Driven Two Stage Lubricated Air Compressor for Industrial Machinery & Workshops
SKU: TB-GN-74777
Estimated Delivery By: Jul 3 - Jul 5
MRP : ₹95289 ₹73299
23% OFF!
Estimated Delivery By: Jul 3 - Jul 5 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹73299 (Including GST)
MRP : ₹95289
23% OFF!
Get Extra ₹1,099 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The GNAT 3 HP Belt Driven Lubricated Air Compressor features a two-stage 2-cylinder pump system, a massive 175-litre storage tank, and a robust 10 Bar working pressure, engineered to deliver a continuous and reliable air supply for long, heavy-duty industrial workflows across India.
Country of origin: India
Specifications
- Brand: GNAT
- Max. Pressure : 10 bar
- Weight (Approx.) : 135 kg
- Tank Capacity : 175 liters
- Air Compressor HP: 3 HP
- Motor: 3 HP
- Number of Cylinders: 2
- Stage: Two Stage
- Air Displacement: 252 LPM
- Displacement CFM: 12 CFM
- Displacement CFM (FAD): 9 CFM
- Maximum Working Pressure: 10 Bar (10 kg/cm²)
- Tank Capacity: 175 Litres (Platform model options include 175L and 250L tanks)
- Drive Type: Belt Driven
- Lubrication Type: Oil-Lubricated
Description
The GNAT 3 HP Belt Driven Lubricated Air Compressor is an industrial-strength power solution engineered deliberately for long, tough, and continuous daily operations. Built from highly durable structural materials, this heavy-duty unit is customized to perform reliably even under the most demanding heavy-duty Indian working conditions. It features an advanced oil-lubricated design that drastically minimizes structural friction between moving parts, helping the internal pump stay exceptionally cool and significantly extending overall machine life and working efficiency.
Features
:- Oil-Lubricated Piston Design: Reduces internal friction between components to ensure smooth mechanical operation, optimal cooling, and a longer life.
- High-Efficiency Two-Stage System: Built with a premium two-stage, 2-cylinder pump architecture that offers highly effective compression ratios for industrial loads.
- Built for Continuous Tough Use: Constructed entirely with high-grade, durable materials designed to endure many hours of daily operation.
- Substantial Air Storage Capacity: Equipped with a spacious 175-litre steel tank to reduce motor recycling and ensure a continuous air supply.
Applications
:- Manufacturing & Assembly: Providing continuous, dependable air line networks for automated assembly units and industrial plants.
- Automotive Repair & Workshops: Running pneumatic tools, sandblasting units, and high-torque impact wrenches inside heavy car and bike workshops.
- Furniture & Structural Painting: Operating commercial spray guns for painting large batches of wood furniture and metal fabrication.
- Construction Sites: Powering large-scale pneumatic nailers, staplers, breakers, and concrete mixers right on the job site.
Usage
:- Position the compressor on a solid, level surface area allowing air to freely flow around the belt drive and motor housing for cooling.
- Inspect the oil level via the pump's sight glass before daily operations to confirm that parts are adequately lubricated.
- Ensure the tank's bottom condensation drain valve is fully sealed before plugging the unit into a matching power supply.
- Switch the automatic pressure toggle button on to let the 3 HP motor cycle the two-stage pump until the tank fills to 10 Bar.
- Connect your desired high-pressure industrial lines or pneumatic machinery to the outlet quick couplers.
- Conduct simple, regular checkups on the machine to guarantee its performance and long structural life.
