Brand: Generic ( Made in India )

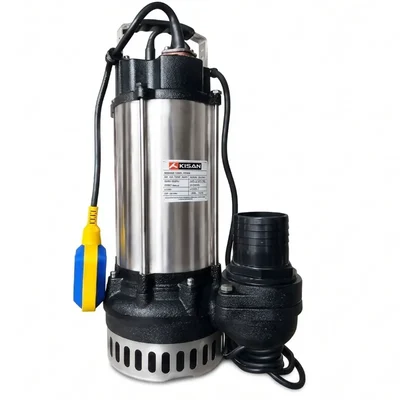

Kisan 3HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP - 300T)
SKU: SI-AT-42209
Estimated Delivery By: Jul 9 - Jul 11
MRP : ₹39200 ₹29000
26% OFF!
Estimated Delivery By: Jul 9 - Jul 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹29000 (Including GST)
MRP : ₹39200
26% OFF!
Get Extra ₹435 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Kisan KSSWP - 300T is a heavy-duty 3 HP (2.2 kW)
50 mm outlet, capable of moving fluid up to 650 LPM
50 mm outlet, capable of moving fluid up to 650 LPM
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 42 kg
- Power : 3 hp
- Flow Rate : 650 lpm
- Head : 18 meter
- Pump Type: Sewage Submersible Pump
- Motor Power: 3 HP (2.2 kW)
- Power Supply (Single Phase): 220 V, 50 Hz, 1Ø
- Power Supply (Three Phase): 380 V, 50 Hz, 3Ø
- Motor Type: Oil-Filled Induction Motor
- Rated Speed: 2800 RPM
- Outlet Size: 50 mm (2 Inch)
- Maximum Flow Rate: Up to 650 LPM
- Solid Handling Capacity: 20 mm
- Insulation Class: Class F
- Protection Class: IP68
- Pump Body Material: Cast Iron
- Impeller Material: Cast Iron (Vortex Type)
- Shaft Material: Stainless Steel
- Mechanical Seal: Double Mechanical Seal (Silicon Carbide / Carbon Ceramic)
- Rated Frequency: 50 Hz
- Voltage Range (Single Phase): 160 – 250 V
- Voltage Range (Three Phase): 380 – 415 V
- Maximum Liquid Temperature: 40°C
- Cable Length: 8–10 m (Approx.)
- Duty Type: Continuous Duty (S1)
Description
The Kisan KSSWP - 300T is a high-performance, heavy-duty sewage submersible pump designed to seamlessly manage municipal, residential, and industrial wastewater challenges. Engineered with a robust cast iron body and a specialized vortex-type cast iron impeller, this pump provides superior resilience against clog-prone solid debris up to 20 mm in size. Powering the system is an oil-filled induction motor generating 3 HP (2.2 kW) of operational force at a rated speed of 2800 RPM. This unit features flexibility across single-phase or three-phase power supplies, integrated with a secure double mechanical seal composed of silicon carbide and carbon ceramic to prevent fluid ingress. Offering continuous operation (S1 duty type) with a highly reliable Class F insulation and IP68 protection class, it smoothly moves fluid at a maximum flow rate of 650 LPM and manages a vertical head up to 18 meters.
Features
:- Heavy-Duty Construction: Built with a rugged, wear-resistant cast iron pump body and impeller to ensure optimal service life in abrasive sludge and corrosive wastewater settings.
- Non-Clogging Vortex Impeller: Utilizes a cast iron vortex-style impeller that creates a swirling liquid vortex to easily clear solid materials away from the inlet.
- Superior Mechanical Sealing: Equipped with a state-of-the-art double mechanical seal constructed from silicon carbide and carbon ceramic to provide excellent oil and fluid barrier security.
- Oil-Filled Induction Motor: Provides consistent heat dissipation and lubrication via its internal oil reservoir, running smoothly at 2800 RPM.
- High Flow & Head Handling: Outfitted with a 50 mm (2-inch) outlet capable of sustaining an exceptional flow rate of up to 650 Liters Per Minute (LPM) and lifting fluid to a maximum head of 18 meters.
- Continuous Duty Operation: Classified under S1 duty type with Class F insulation and an IP68 dust-and-waterproof immersion rating, designed safely for nonstop submersible environments.
Applications
:- Residential Sewage Disposal: Efficiently pumps raw sewage, septic effluents, and household graywater from domestic holding tanks.
- Commercial Basement Drainage: Quickly manages floodwater and groundwater pooling in deeply low-lying structures or basements.
- Industrial Effluent Handling: Transfers heavily loaded wastewater, chemicals, and industrial residue safely through chemical processing loops.
- Construction Dewatering: Drains muddy excavations, debris-filled puddles, pits, and waterlogged work areas around construction projects.
- Municipal Sewage Systems: Fits directly into local water collection nodes to regulate community wastewater treatment networks.
Usage
:- Submersion Requirements: Always submerge the pump completely into the fluid to guarantee normal water cooling during operations; do not run dry.
- Voltage Alignment: Verify that your local current aligns safely with the designated single-phase (160–250 V) or three-phase (380–415 V) limits before booting up.
- Solid Particle Sizing: Ensure that the input fluid lacks dense structural debris exceeding the maximum 20 mm solid handling parameter to shield internal systems from damage.
- Temperature Thresholds: Do not operate the pump in thermal liquids or industrial runoff exceeding a maximum liquid temperature of 40°C.
- Secure Suspension: Lower or hang the machine using a reliable dedicated lifting cable; never drag, hang, or strain the pump using its electrical power cable.
Maintenance
:- Regular Structural Inspections: Regularly check the cast iron pump body, inlet screen, and suction passage for accumulated foreign matter or blocking threads.
- Seal and Oil Audits: Periodically examine the internal oil state inside the motor compartment to ensure the dual silicon carbide / carbon ceramic mechanical seal has not degraded.
- Insulation Inspections: Routinely audit the electrical insulation resistance along with the integrated 8–10 meter cable line to eliminate frayed wiring paths.
- Impeller Clearance Checks: Manually spin and inspect the vortex cast iron impeller for scoring, physical erosion, or tangled hair and rags that decrease flow rates.
- Storage Procedures: If withdrawing the device for seasonal storage, wash off chemical residue, clear the internal chamber, dry thoroughly, and store it upright in a dry area.
