Brand: Generic (Imported)

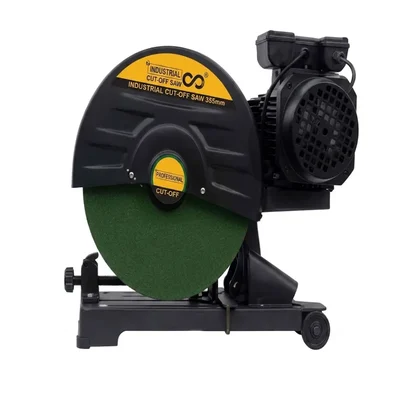

Infinity 3kW Single Phase Heavy Duty Cut Off Saw 400mm Metal Cutting Abrasive Mitre Saw INF-COS30400HD
SKU: TI-I3-72430
Estimated Delivery By: May 28 - May 30
MRP : ₹31200 ₹25999
17% OFF!
Estimated Delivery By: May 28 - May 30 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹25999 (Including GST)
MRP : ₹31200
17% OFF!
Get Extra ₹390 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Infinity 3kW Single Phase Heavy Duty Cut Off Saw (Model INF-COS30400HD) features a high-power 2840 RPM induction motor tailored for structural metal cutting. Outfitted with an adjustable 0° to 45° mitre clamping vice, a heavy-duty wheel guard, and dual arbor compatibility for 400 mm abrasive wheels.
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Power : 3000 w
- Weight (Approx.) : 52 kg
- Model: INF-COS30400HD
- Product Type: Single-Phase Heavy Duty Metal Cut Off Saw
- Rated Power Input: 3 kW (3000 Watts)
- Electrical Configuration: Single Phase, AC Power Input
- No-Load Operational Speed: 2840 r/min
- Mitre Adjustment Angular Range: 0° to 45° Degrees
- Compatible Wheel Sizes: 400 × 25.4 × 3.2 mm / 400 × 32 × 3.2 mm
- Max Cutting Capacity (Steel Tube): Φ135 × 6 mm
- Max Cutting Capacity (Round Steel): Φ50 mm
- Max Cutting Capacity (Angle Steel): 100 × 10 mm
- Max Cutting Capacity (U-Steel Channel): 126 × 53 mm
- Base Frame Formulation: Cast-Iron Plate with Integrated Wheel Nodes
Description
The Infinity Single Phase Heavy Duty Cut Off Saw is a high-power, industrial-grade abrasive metal cutting device. It is designed to make precise, quick, and clean structural cuts through a variety of dense metal shapes. It is constructed on a sturdy cast-iron base with integrated transport wheels and a heavy steel spark-deflection wheel guard, guaranteeing superior performance and safety for structural steel fabricators, engineering workshops, and construction fronts.
Features
:- High-Capacity 3 kW Induction Motor: This sturdy 3000W motor provides enormous, constant rotating force to cut cleanly through thick industrial steel pieces.
- Versatile 0° to 45° Mitre Splicing: Capable of making precise angle cuts on structural framework profiles with an adjustable heavy-duty gripping vice.
- Huge 400 mm Wheel Tracking: Standard 400 mm abrasive wheels with either 25.4 mm or 32 mm center bores can be tracked thanks to dual-arbor adaptability.
- Rigid Heavy-Duty Base Support: Equipped with transport wheels for easy moving over workshop floors, this base is incredibly solid and vibration-dampening.
- Full-Enclosure Structural Wheel Guard: This heavy-gauge metal safety cover protects the operator from hot metal shavings and sparks.
Applications
:- Industrial Structural Steel Fabrication: Cutting massive square steel beams, angle iron trusses, and thick structural U-channels neatly.
- Heavy structural piping lines, industrial scaffolding tubes, and reinforced steel bars (rebars) are processed quickly on construction and civil engineering sites.
- Automotive & Chassis Manufacturing: Offering accurate geometric 45-degree angle mitre profiling for utility trailers and heavy-duty commercial truck frames.
- Heavy Repair Workshops & MRO Stations: An essential metal processing equipment for cutting iron plate segments and stuck industrial pipes.
Usage
:- Place the Infinity 3kW cut-off saw on a level, non-slip concrete workshop floor and make sure the safety guard tracks cover the blade area neatly.
- Using the indicated reference index lines, adjust the alignment angle (0° to 45°) and securely interlock your target steel profile or U-channel inside the heavy mitre vice clamping blocks.
- Connect the industrial cord to a special single-phase AC outlet box that can securely handle strong motor starter amp surges.
- To fully accelerate the 400 mm abrasive wheel to its clean no-load velocity of 2840 RPM, press the trigger switch.
- Using consistent, steady hand pressure, guide the heavy handle downward so that the abrasive disc may cleanly pass through the thickness of the iron wall without choking or bogging the induction core.
