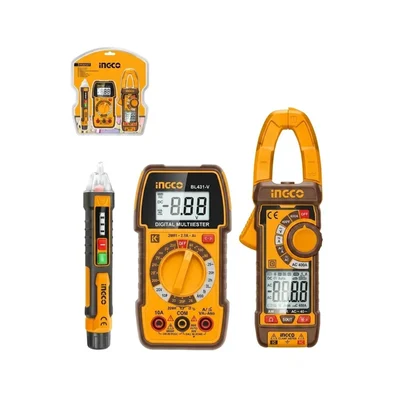

Ingco True RMS Digital AC Clamp Meter Multimeter Non-Contact Voltage Detector Electrical Test Kit DM3069

Brand: INGCO

Ingco True RMS Digital AC Clamp Meter Multimeter Non-Contact Voltage Detector Electrical Test Kit DM3069

Name: Ingco True RMS Digital AC Clamp Meter Multimeter Non-Contact Voltage Detector Electrical Test Kit DM3069
Brand: INGCO
SKU: TI-IT-80859
Price: 2690 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-IT-80859

MRP : ₹3600 ₹2690

25% OFF!

Get Extra ₹40 OFF on Prepaid Orders

Estimated Delivery By: Aug 15 - Aug 17

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹2690 (Including GST)

MRP : ₹3600

25% OFF!

Get Extra ₹40 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

A professional 3-piece electrical test kit featuring a True RMS clamp meter, multimeter, and non-contact voltage tester pen.

Country of origin: China

Brand: INGCO
Weight (Approx.) : 680 gm
Net Quantity : 1 pc

Model Number: DM3069
Kit Components: 1x DCM62001 Digital AC Clamp Meter, 1x DM360011 Digital Multimeter, 1x VD100091 AC Voltage Detector
Clamp Meter Display: True RMS 4000 counts
Clamp Meter AC Current Range: 4A / 40A / 400A
Clamp Meter DC/AC Voltage Range: 400mV / 4V / 40V / 600V
Clamp Meter Resistance Range: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
Clamp Meter Capacitance Range: 4nF / 40nF / 400nF / 4uF / 40uF / 400uF / 4mF
Multimeter Display: True RMS 2000 counts
Multimeter DC Voltage Range: 200mV / 2V / 20V / 200V / 600V
Multimeter AC Voltage Range: 20V / 200V / 600V
Multimeter DC Current Range: 20mA / 200mA / 10A
Multimeter Resistance Range: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
Voltage Detector AC Voltage Range: 12V–1000V (High Sensitivity), 48V–1000V (Low Sensitivity)
Voltage Detector Alarm: Sound and Light Alarm
Voltage Detector Flashlight: White LED
Power Source: 6 x R03 AAA Batteries (Included)
Packaging: Double Blister in Color Box

The Ingco DM3069 3-Piece Electrical Test Kit is an all-in-one diagnostic set engineered for electricians, field service engineers, and maintenance technicians. The set includes a True RMS 4000-count Digital AC Clamp Meter (DCM62001) for measuring AC currents up to 400A, voltage, resistance, and capacitance; a True RMS 2000-count Digital Multimeter (DM360011) for precise AC/DC voltage, DC current, and resistance checks; and an AC Voltage Detector (VD100091) featuring dual-sensitivity modes with audible/visual alarms and an integrated white LED flashlight. Supplied complete with test leads and 6 AAA batteries, this kit delivers comprehensive electrical troubleshooting in a compact, field-ready package.

Features

Comprehensive 3-piece electrical testing solution including clamp meter, multimeter, and voltage detector
Digital AC Clamp Meter with 4000-count True RMS display and 400A AC current capacity
Digital Multimeter with 2000-count True RMS display for DC/AC voltage and DC current testing
Non-contact AC Voltage Detector featuring dual-sensitivity modes (12V–1000V and 48V–1000V)
Audible and visual LED alarms with built-in white LED flashlight on voltage tester
Comes pre-packaged with 6 pcs R03 AAA batteries for instant out-of-the-box operation

Applications

Electrical maintenance, fault diagnostics, and circuit testing in residential and commercial buildings
Measuring AC current draw on motors, heavy machinery, and HVAC equipment
Testing voltage presence on live wires, outlets, and circuit breakers safely
Measuring capacitance and resistance on electronic components and board repairs

Usage

Insert two AAA batteries into each device (Clamp Meter, Multimeter, Voltage Detector) before operation.
For AC current measurement, open the jaw of the DCM62001 clamp meter and clamp it around a single live conductor.
For voltage, resistance, or capacitance testing, attach test leads to the DM360011 multimeter or clamp meter and select the respective dial position.
To check live voltage without contact, press the power button on the VD100091 voltage detector and place the tip near the wire or switch box.
Observe LED alerts, sound signals, or digital screen readings, and turn off devices after testing to conserve battery power.
