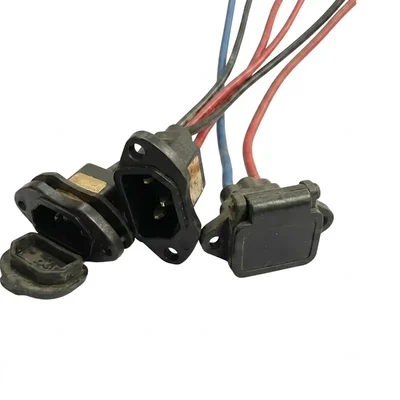

Premium Quality 3-Pin Male EV Charging Socket with Protective Dust Cap (Pack of 5)

Brand: Generic

Premium Quality 3-Pin Male EV Charging Socket with Protective Dust Cap (Pack of 5)

Name: Premium Quality 3-Pin Male EV Charging Socket with Protective Dust Cap (Pack of 5)
Brand: Generic
SKU: SI-3M-75562
Price: 499 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: SI-3M-75562

MRP : ₹599 ₹499

17% OFF!

Get Extra ₹7 OFF on Prepaid Orders

Estimated Delivery By: Jul 14 - Jul 16

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹499 (Including GST)

MRP : ₹599

17% OFF!

Get Extra ₹7 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

This high-efficiency 3-pin male common charging socket with pre-attached heavy-duty wires comes as a ready-to-install pack of 5, offering secure panel-mount integration for electric vehicles and lithium battery packs.

Country of origin: India

Brand: Generic

Enclosure Material: High density polyamide Nylon 66 or fortified ABS thermoplastic
Contact Terminal Pin Composition: Plated solid brass or high conductivity copper alloy
Terminal Contact Coating: Advanced anti-oxidizing nickel or tin plating
Housing Flame Rating: UL94 V-0 or UL94 V-1 flame-retardant compliance standard
Mounting Style: Dual-flange flush panel mount with side wing eyelets
Connector Compatibility Style: IEC 60320 C14 alternative or universal three prong e-mobility inline style
Maximum Voltage Rating: 250 Volts AC
Maximum Current Rating: 10 Amps to 16 Amps
Wired Leads Type: Heavy-duty insulated color-coded copper conductors
Weather Protection: Integrated protective rubber flip-cap dust cover

The Premium Quality 3-Pin Male Common Charging Socket Assembly is a commercial-grade, pre-wired solution specifically designed for optimal power connectivity in modern electric mobility and battery pack applications. This multi-pack provides a robust gateway linking external AC/DC chargers directly to internal battery packs or power distribution grids. Engineered to completely remove the hassle and quality risks associated with manual wire-soldering, each socket comes equipped with integrated color-coded connection wires.

Features

Completely Pre-Wired Setup: Supplied with high-grade, pre-attached connecting leads to skip manual wire soldering, saving assembly time while eliminating cold joints.
Dual-Flange Wing Panel-Mount: Engineered with dedicated outer perimeter eyelets for rigid, flush-fit structural installations via rivets, bolts, or screws.
Integrated Rubber Dust Cover: Includes a resilient, flip-open rubber cap that seals the internal contact terminals from environmental debris, oxidation, and ambient moisture.
Premium Thermoplastic Housing: Crafted from impact-resistant, high-density Nylon 66 providing flame-retardant safety compliance under UL94 V-0 or V-1 grading.
Corrosion-Resistant Contact Pins: Features solid brass core pins with an advanced nickel or tin-plated coating to maximize electrical path conductivity and minimize thermal losses.

Applications

Electric Vehicle Production: Universal AC/DC charging input terminal for electric scooters, e-bikes, and low-speed urban electric vehicles.
Lithium Battery Pack Assembly: Main charging inlet port interface for engineering customized lithium-ion or lithium iron phosphate energy storage banks.
Industrial Panel Arrays: Flush-mount power inlets for commercial electronics cabinets, industrial power supplies, and distribution enclosures.
Hardware Distribution and Spares: Premium replacement sockets for e-commerce spare parts channels and retail repair stations.

Usage

Verify the planned enclosure dimensions match the socket housing layout and dual-flange side mounting eyelets.
Cut or punch a matching flush-mount profile opening on your target device panel or battery case.
Match and splice the pre-attached color-coded copper power wires into the primary internal battery management system or power supply circuit.
Secure the socket housing firmly into the panel cutout using standard machine screws, bolts, or rivets.
Ensure the rubber flip-cap remains fully snapped shut over the male pin interface whenever an active charging cord is not connected.

Maintenance

Inspect the external flip-top rubber dust cap periodically for cracks, splits, or structural wear to maintain proper sealing.
Keep the rubber cap closed tightly whenever the vehicle or device is not attached to an active power charger.
Blow out any internal debris or loose dust accumulation inside the connector well using compressed air.
Regularly check the panel attachment fasteners to prevent physical alignment shifting caused by continuous plug insertions.
Examine the internal plated contact terminal pins for signs of oxidation, tracking, or unexpected thermal discoloration.
