Brand: Generic ( Made in India )

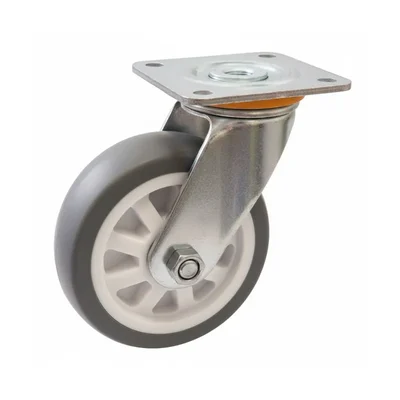

Heavy Duty 4 inch / 100 mm Swivel Type Double Ball Bearing TPR Caster Wheel
SKU: TI-HD-51219
Delivery By: Dec 9 - Dec 11
MRP : ₹1300 ₹1070
18% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹1070 (Including GST)
MRP : ₹1300
18% OFF!
Get Extra ₹16 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
4 inch / 100 mm Swivel Type Double Ball Bearing TPR Caster Wheel
150 kg / wheel Load Capacity
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 1 kg
- Wheel Material : TPR
- Wheel Size : 100 mm (4 inches)
- Thread Width : 50 mm
- Loading Height : 143 mm
- Swivel Radius : 84 mm
- Bearing : Double Ball Bearing
- Load Capacity : 150 kg / pc
Description
The Heavy Duty 4 inch (100 mm) Swivel Type Double Ball Bearing TPR Caster Wheel features a 100 mm diameter thermoplastic rubber (TPR) tread for shock absorption, floor protection, and quiet operation on smooth surfaces like concrete or tile. It includes double ball bearings for smooth 360-degree swivel rotation with low resistance, a typical load capacity of 80-150 kg per wheel, and a total height around 130 mm with a standard top plate mount. The rigid frame, often zinc-plated steel, ensures durability in industrial settings, with options for brakes on some models to enhance control.
Features
:- 100 mm (4 inch) wheel diameter with TPR (thermoplastic rubber) tread for shock absorption and floor protection
- Double ball bearing raceways for smooth 360-degree swivel rotation and low rolling resistance
- Heavy duty zinc-plated steel frame with welded legs for strength and corrosion resistance
- Non-marking gray TPR tread resists chemicals, oils, acids, and water for wash-down applications
- Quiet operation with noise reduction and vibration dampening on smooth floors
- Durable polyolefin core bonded to TPR tread prevents flat spotting and ensures longevity
- Options for brakes (side or total lock) available on select models for controlled movement
Applications
:- Industrial trolleys and carts for easy maneuvering in warehouses and factories.
- Medical equipment such as hospital beds and mobile medical carts requiring smooth, quiet movement.
- Food service and distribution trolleys where floor protection and noise reduction are important.
- Retail store carts and display racks needing swivel mobility for better access.
- Mobile kitchen tables and catering equipment that benefit from swivel and load capacity.
- Laundry trolleys and housekeeping carts for hospitality and institutional use.
- Mobile tool racks, workstations, and assembly line carts in manufacturing environments.
- Mobile storage units and magazine/book carts in offices and libraries.
- Road cases and transport trolleys for events and exhibitions requiring mobility and stability.
- Light duty industrial applications on smooth surfaces like tile, concrete, and coated floors.
