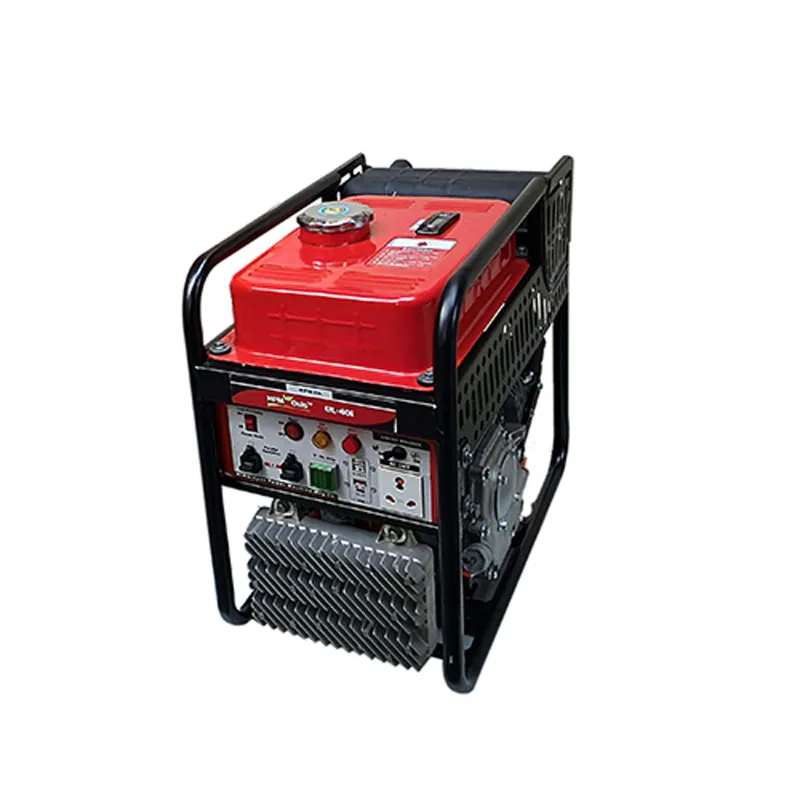

HPM 4 KVA Recoil Start Petrol Inverter Portable Generator (Oasis UL-40i-EV)

Brand : HPM

SKU : TI-H4-22481

MRP : ₹103030

₹69230

33% OFF!

1862 people have viewed this recently

Get Extra ₹1,038 OFF on Prepaid Orders

Delivery By: Jun 21 - Jun 23

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

HPM 4 KVA Petrol Inverter Generator

Recoil Start

16.5 Amp Rated Current Of Generator

7 Ltr. Fuel Tank Capacity

Country of origin: India

Specification

Brand: HPM
Weight (Approx.) : 33 kg
Fuel Used : Petrol

Model No. : Oasis UL-40i-EV

Generator :

Max AC. Output VA : 4000
Rated AC. Output VA : 3800
Rated Current Amps : 16.5
NFB Amps : 17
AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
Invertor : 100 KHz, IGBT Based Digital Invertor – 4 Kw

DC Outputs :

DC Outputs - 5V to 20 V & DC Ports
USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
USB Output Fast Charging QC 3.0 (3) : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
Type - C USB (4) : 1* 'C' Type - 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A

Engine :

Model : HM170P
Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
Maximum Power : 6.5 HP @ 3600
Bore x Stroke : 70x58 mm
Displacement : 223 cc
Starting System : Recoil Start
Governor : Electronic Governor (Load Sensitive – Variable Speed) Engine RPM 2200 (No Load) to 3800 RPM (at Full load)
Fuel Tank Capacity : Petrol -7 Ltr.
Fuel Consumption : Petrol 1.5 ltr/hr Approx.
Lube. Oil Capacity : 600 ml.
Lubricating Oil Consumption : 2.5 gm./Hr.
Sound level (Db) (from 1 meter) : <86Db (as per CBCP - II Norms)
Continues Running (With One Filling) : 5 Hrs. Approx.

Panel & Other Standard Features :

Multifunction Digital Meter & Indicator : Digital Control Panel (V, Hz, Amp)
Oil Alert System : Yes
Over Load Indicator : Yes
2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
Fuel Level Gauge : Yes
AC On /Off, Overload Protection (NFB) : Yes
Electronic Over Load Protection : Yes, Inbuilt with Inverter

Description

The HPM Oasis UL-40i-EV is a 4 KVA petrol inverter generator with recoil start. It provides clean power, low noise, and high fuel efficiency. Ideal for camping, RVs, and small households, it features automatic voltage regulation, overload protection, and a durable design. Suitable for sensitive electronics.

Features

4 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
To get more Power to Run Heavy Equipment, 2 or More HP 40i Generator can be made to Run In Parallel, Two HP40i Generators in Parallel will produce 4 KVA + 4 KVA = 8 KVA Power

Accessories

Owner Manual 1 pcs
Funnel 1 pcs
Screw Driver 1 pcs
Spanner 1 pcs
Three Pin Plug 1 pcs

Applications

Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, for all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc.
