Brand: MITSUYAMA

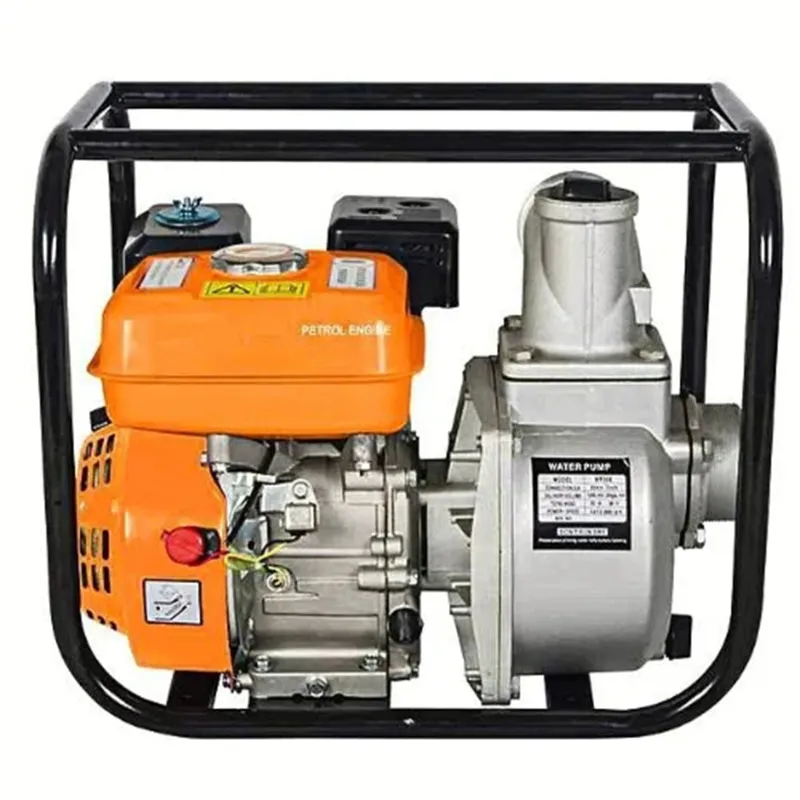

Mitsuyama WA30, 6.5 HP 3 inch Petrol Operated Water Pump with Accessories
SKU: TI-MW-11187
₹9400 (Including GST)
MRP : ₹11000
Get extra ₹141 Discount (On Checkout)
Delivery By: May 14 - May 16
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Mitsuyama WA30, 6.5 HP Petrol Operated Water Pump
3-inch (76 mm) Inlet & Outlet Size
Country of origin: China
Description
The Mitsuyama petrol operated water pump is perfect for agricultural and gardening tasks. It has a powerful 4 stroke petrol air cooled engine. This pump set has a 3 inch (7.62 cm) inlet and outlet diameter and an output capacity of 750 to 800 liters per minute. Since it is a portable pump, moving this pump set from one location to another is quite simple.
Features
:- Potable Design : It is designed to handle the most toughest jobs like irrigating a field, draining a pool in no time, pump out a flooded trench, fill or empty a water storage tank.
- Extra Lifting Capacity: It has higher suction power and give high discharge in its operating range.
- Highly efficient, energy-saving, lightweight, and compact easily maintainable design that is required in irrigation.
Specification
:- Brand: MITSUYAMA
- Power : 6.5 hp
- Weight (Approx.) : 21 kg
- Fuel Used : Petrol
- Displacement : 212 cc
- Stroke : 4
- Model No : WA30
- Engine Model : 168F
- Starting System : Recoil Starter
- Max Suction : 8 meter
- Max Head : 22 meter
- inlet Size : 3-inch (76 mm) (Approx.)
- Outlet Size : 3-inch (76 mm) (Approx.)
- Flow Rate (Min) : 750 Liter
Accessories
:- Spanner Set
- Aluminum Coupler
- Washers
- Clamps
- Oil Measuring Can
In Built Parts :
- Foot Valve
- Rubber Feets
Applications
:- Use For Irrigation, Water Logging, Commercial Buildings, Apartments, Gardening & Hotels
Usage
:Before you start:
- Fill the tank with unleaded petrol
- Attach the suction hose to the pump's intake and the delivery hose to the outlet.
- Ensure all connections are secure and leak-free.
- You prime the pump by filling it with water through the priming plug. This removes air and prepares it to draw water effectively
Starting the Engine:
- Ensure the fuel valve is open, allowing petrol to flow to the engine. If the engine is cold, engage the choke.
- Pull the recoil starter cord gently until you feel resistance, then give it a sharp tug.
- Repeat until the engine starts.
- Once the engine starts, gradually disengage the choke as it warms up.
- Adjust the throttle to control the water flow rate
**Turn off the engine and allow it to cool before refueling.
